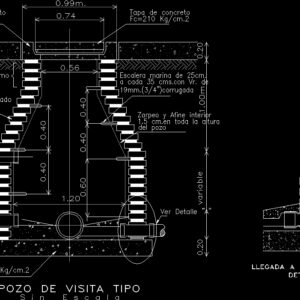

Manhole – Lateral section

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Well type, concrete, minimum, see detail, variable, Cm., Where you specify the project., To be built only, Note: falls wells the wells, maximum, Machined brick wall, Minimal bricks, Concrete crusher, from the well, Clearance, Cm. In all height, Each cms.con vr. from, Sea ladder, Concrete cover, Arrival well visit, detail, Sleeve, Machining of, brick wall

Raw text data extracted from CAD file:

V V POZO DE VISITA TIPO Concreto Fc= 175 Kg/cm.2 0.60 minimo V S i n E s c a l a Ver Detalle "A" V 0.20 V V 0.60 V V 1.20 V 0.40 variable de 5x10x20 cm. donde especifique el PROYECTO. de visita se construiran unicamente NOTA: Las caidas adosadas a los pozos y 5 maximo Muro de ladrillo maquinado 3 ladrillos minimo Fc=210 Kg/cm.2 Brocal de concreto V 1.00m. 0.40 V del pozo Zarpeo y Afine interior 1.5 cm.en toda la altura 0.40 0.40 V V V V V V 19mm.(3/4")corrugada a cada 35 cms.con Vr. de Escalera marina de 25cm. V V 0.56 V V Fc=210 Kg/cm.2 Tapa de concreto V 0.74 V V 0.20 0.99m. V V LLEGADA A POZO DE VISITA DETALLE "A" Manga de Empotramiento 5 x 10 x 20 Maquinado de Muro de Ladrillo

Language	Spanish
Drawing Type	Section
Category	Water Sewage & Electricity Infrastructure
