Material hoists – Services elevator -doors two pannels sliding vertical

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

hook, window, illumination, machine room, current outlet, lift truck, destined to the transport of small ones of preference in small limited trips of compact dimensions what allows its easy installation adapted developed for entrances in the same plummet allowing the installation of opposite entrances without modification of measures. they do not allow the entrance of which the hollows of the hollow will take a sill threshold with height of mm they will have a vertical light of mm. the speed of travel is from the cabin will be closed by its non-accessible faces., rear counterbalance forklift model cap. vel. height cabin the installation of the machine is always done on slabs of hºaº, plant, box, walls made of non-combustible material, cut esc., m.c., service elevator, It is a type of passenger lift with cabin adequately sized for transport of service rooms e.t.c. traffic capacity: they must be able to transport in five minutes the following minimum percentages of population of a building: have trash pipes etc. The traffic interval does not have these conditions: nº asc. maximum interval sec., plant esc., elevator shaft, cabin, box, walls made of non-combustible material, difference of height difference between floor box, roof cap for exhaust, cargo elevator mod. capac class kg sliding doors vertical panels, Poza access door, cut esc., esc

Raw text data extracted from CAD file:

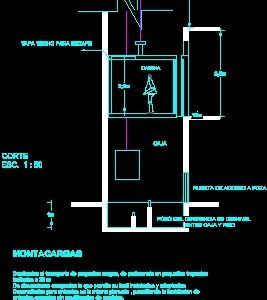

,69m ,65m 1,1m 4,2m ,7m ,69m ,8m ,8m ,8m 3m 3,5m 1,917m 2,411m 3,5m 1m 4,2m ,16m 2,2m 2,4m gancho Ventana Iluminacion CUARTO DE MAQUINAS 5 Toma corriente 600w MONTACARGAS Destinados al transporte de pequeñas cargas, de preferencia en pequeños trayectos limitados a 36 m De dimensiones compactas lo que permite su facil instalacion y adaptacion Desarrollados para entradas en la misma plomada , permitiendo la instalacion de entradas opuestas sin modificacion de medidas. No permiten la entrada de personas, por lo cual llevaran los vanos del hueco un umbral o antepecho con altura de 400 mm y tendran una luz vertical de 1200 mm. La velocidad de marcha es de 1,5 m/seg . La cabina sera cerrada por sus caras no accesibles. MONTACARGAS DE CONTRAPESO TRASERO Modelo MC-100 cap. 100kg Vel. 0,55m/seg Cabina ,65m x ,69m x ,70 m altura La instalacion de la maquina siempre se hace sobre losas de HºAº PLANTA 5 5 CAJA 5 5 PAREDES DE MATERIAL INCOMBUSTIBLE CORTE ESC. 1 : 50 5 5 M.C. 5 5 5 ASCENSOR DE SERVICIO (MONTACARGAS) Es un tipo de ascensor de viajeros con cabina dimensionada adecuadamente para el transporte de garrafas, camas, servicio de cuartos e.t.c. Capacidad de trafico: Deben ser capaz de transportar en cinco minutos los siguientes porcentajes minimos de poblacion de un edificio: -Cuando tenga tubos de bajada de ropas, basura etc. el 8% -Cuando no tenga estas condiciones el 12 % Intervalo de trafico: Nº asc. 2 Intervalo maximo 60 seg. 5 5 5 5 PLANTA ESC. 1 : 50 5 5 POZO DEL ELEVADOR CABINA CAJA 5 PAREDES DE MATERIAL INCOMBUSTIBLE 5 DIFERENCIA DE DESNIVEL ENTRE CAJA Y PISO TAPA TECHO PARA ESCAPE ASCENSOR DE CARGA MOD. EC- 20-04 CLASE A CAPAC. 2000 KG PUERTAS 2 PANELES DESLIZABLES VERTICALES PUERTA DE ACCESO A POZA 5 CORTE ESC. 1 : 50 ESC. 1:50
