Maternal And Child DWG Full Project for AutoCAD

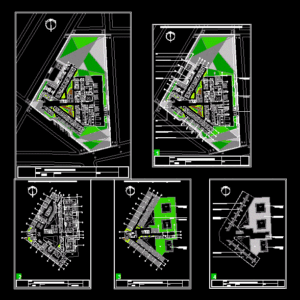

Mother and Child Clinic Clinic level 2. Academic Project 3 storeys.
Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):
p. of arq enrique guerrero hernández., p. of arq Adriana. rosemary arguelles., p. of arq francisco espitia ramos., p. of arq hugo suárez ramírez., buro, ladder of two steps, bridge table, gothic, scale :, contains :, present :, date :, design ix, floor covering, level ii, cover for air extractors, on roof in tile on machimbre, hemetica cover in acrylic, gynecology, first level architectural floor, rubbish, resuscitation room, kitchen, magnetic resonance, scans, toilet, mammography, echocardiogram, concrete prefabricated sardinel, concrete floor in light gray tone, floor in cobblestone of concrete tone dark gray, green zone – area empradizada with arborización own of the sector, metallic column for support of the cantilever, parking bay for users of external consultation., square of receipt, step pedestrian to level, guide line for patients with disability visual in relief concrete slab, second level architectural floor, third level architectural floor plan, green roof, implantation model, arquit floor roof ectonic, vane with translucent cover in polycarbonate for ventilation of bathrooms in rooms, translucent cover in polycarbonate for natural lighting of fixed points, space between plates for natural illumination of corridors and circulations, covered in lightened plate of concrete on porches
Raw text data extracted from CAD file:
| Language | Spanish |
| Drawing Type | Full Project |
| Category | Hospital & Health Centres |
| Additional Screenshots |
 |
| File Type | dwg |
| Materials | Concrete, Other |
| Measurement Units | Metric |
| Footprint Area | |
| Building Features | Garden / Park, Deck / Patio, Parking |
| Tags | academic, autocad, child, CLINIC, DWG, full, health, health center, Hospital, Level, medical center, Project, storeys |
