Meat Industry Workplace Project DWG Full Project for AutoCAD

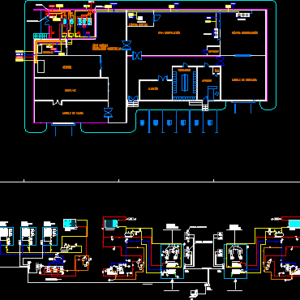

Meat industry workplace project
Drawing labels, details, and other text information extracted from the CAD file (Translated from Catalan):
P.c., V., R.c., A.i., M Big, Master’s degree in air conditioning cooling, From sausages with dryer, Polytechnic University of Catalonia, Carried out:, J. Kills, A. Czech, Project:, Plane:, Flat number:, June, Scale:, Date:, Drying detail, bar, P.e., P.a., P.d.a., P.b., Outer probes, Internal probes, P.b., P.d.a., P.a., Air ducts return, Dryer, Stove, P.b., P.a., P.e., Preserved, Of manipulation, Of rest, outdoor, Liquid, Of compressor collectors of aspiration download compressor bitzer, Liquid, outdoor, Moisturizers, Centrifuges, Of support, Auxiliary, Electric cameras, Electric stove, Electric dryer, Of communications, Electric interface cameras pc, Aspiration, bar, Liquid, From sausages with dryer, Carried out:, Project:, Plane:, Flat number:, June, Scale:, Date:, Scheme of principle, Thermostatic expansion valve, Oil filter, Anti return valve, Pressure reducing valve, Oil separator, Oil level regulator, Oil container, Condensed evacuation drainage, Nozzle humidification, Collector suction, Collector download, High pressostat, Thermostat, General condenser, Solenoid valve, Liquid container, Safety valve, Dehydrator filter, Air direction control, Centrifugal drier fan, Electrical resistance of support, Evaporator, Auxiliary condenser, Humidity probe relative, Liquid viewer, Alternative semihermetic compressor, Legend, High pressure gauge, Low pressure gauge, Filter aspiration, valve, Check valve, Low pressure switch, High pressostat, Suction separator, Step valves, Drying cabinet stainless steel stanchion, Mod., Polytechnic University of Catalonia, From sausages with dryer, Machinery situation Drawn pipes, Master’s degree in air conditioning cooling, Project:, Carried out:, A. Czech, Plane:, M Big, J. Kills, Flat number:, Date:, Scale:, June, W.c., Circulation forklifts, Stove, Drying, Loading dock, Packing, Bdcnoul, Changing rooms, Warehouse, Bdcnoul, Offices, Consevacion carne, Polyurethane, From sausages with dryer, Machinery situation Drawn pipes, Project:, Carried out:, Plane:, Flat number:, Date:, Scale:, June, W.c., Circulation forklifts, Drying, Loading dock, Packing, Bdcnoul, Changing rooms, Warehouse, Bdcnoul, Offices, Camera conservation, Condenser mounting stove room, Drying capacitor, Electric panel, Drying compressor, Compressor stove, Other compressors services, Other condenser mounting services, Container other services, Drying vessel, Container stove room, Stove, Manipulation room, Resting chamber, spices, Discharge spring, Zone cars
