Metal Grating Panel CAD Detail for Industrial Access

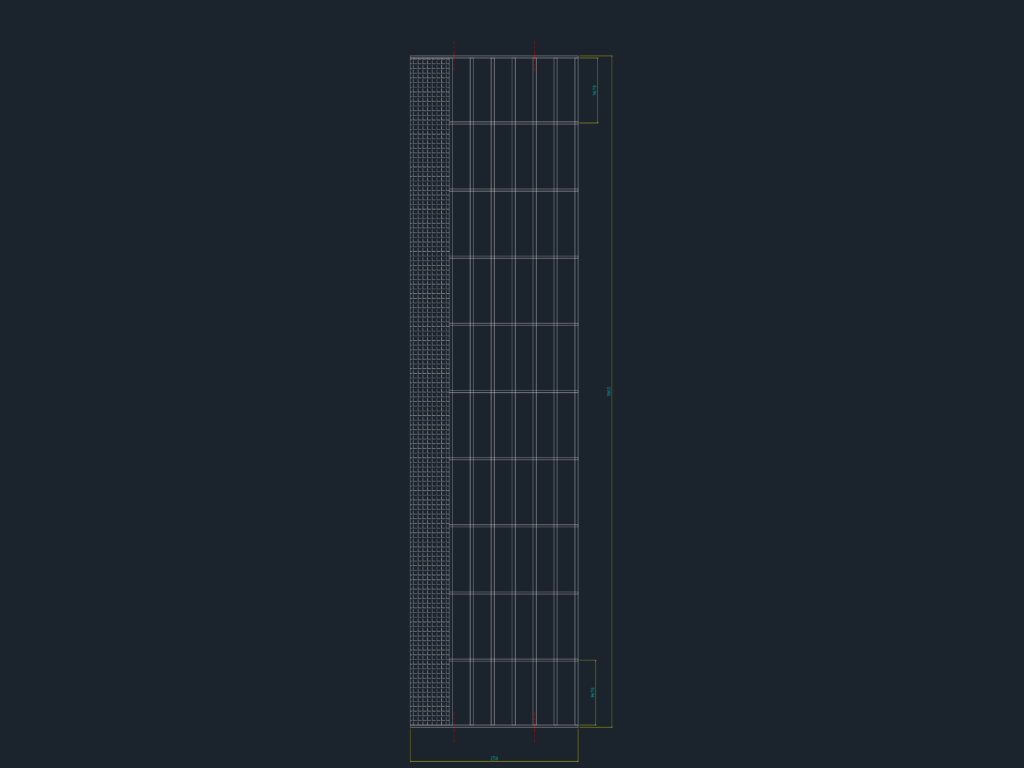

CAD plan view of a 250x1000mm metal grating panel with 3.2mm steel plate and structural frame.

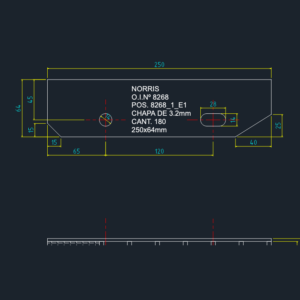

Grating panel detail for custom industrial covers. Uses 3.2mm thk. steel plate with structural frame; 250mm x 1000mm typ. dims. Includes integrated hardware blocks like hinges and teflon rollers etc.

FREE

File Details

File Type
DWG
Type
Detail
Language
Spanish
Materials
Steel
Units
Metric
Uploaded by
CAD Workshop
Category
Misc Plans & Projects
Published
May 16, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

construction DETAIL floor grating hardware hinge industrial plate rejilla roller steel
