Metal Staircase Detail DWG Detail for AutoCAD

Metal Staircase Detail DWG Detail for AutoCAD

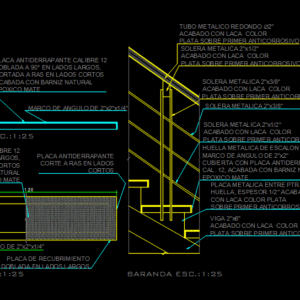

Prefabricated staircase

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Non-slip plate cut ras on short sides, Coating plate folded on long sides, Angle frame, Anti-slip plate caliber folded on sides cut ras on short sides finished with matt epoxy natural varnish, Round metal tube finished with silver lacquer on anticorrosive primer, variable, Metal footprint step angle frame frame with non-slip plate lime. Finished with matt epoxy natural varnish, Beam finished with silver lacquer on anticorrosive primer, Metal base finish with silver lacquer on anticorrosive primer, Metal, Metal base finish with silver lacquer on anticorrosive primer, Metal plate between ptr thickness finished with silver lacquer on anticorrosive primer, Anti-slip plate caliber folded on sides cut ras on short sides finished with matt epoxy natural varnish, Angle frame, railing, paw print, Cut fingerprint

Raw text data extracted from CAD file:

\A1;0.20 \A1;0.20 \A1;0.20 \A1;0.08 \A1;0.05 \A1;0.05 \A1;0.05 \A1;1.20 \A1;0.30 \A1;VARIABLE \A1;0.20 \A1;0.90 PLACA ANTIDERRAPANTE CORTE A RAS EN LADOS CORTOS PLACA DE RECUBRIMIENTO DOBLADA EN LADOS LARGOS 5 MARCO DE ANGULO DE 2"x2"x1/4" 5 PLACA ANTIDERRAPANTE CALIBRE 12 DOBLADA A 90° EN LADOS LARGOS, CORTADA A RAS EN LADOS CORTOS ACABADA CON BARNIZ NATURAL EPOXICO MATE TUBO METALICO REDONDO d2" ACABADO CON LACA COLOR PLATA SOBRE PRIMER ANTICORROSIVO VARIABLE HUELLA METALICA DE ESCALON MARCO DE ANGULO DE 2"x2" CUBIERTA CON PLACA ANTIDERRAPANTE CAL. 12, ACABADA CON BARNIZ NATURAL EPOXICO MATE VIGA 2"x6" ACABADO CON LACA COLOR PLATA SOBRE PRIMER ANTICORROSIVO SOLERA METALICA 2"x1/2" ACABADO CON LACA COLOR PLATA SOBRE PRIMER ANTICORROSIVO SOLERA METALICA 2"x1/2" ACABADO CON LACA COLOR PLATA SOBRE PRIMER ANTICORROSIVO \A1;SOLERA METALICA 2"x3/8" SOLERA METALICA 2"x3/8" ACABADO CON LACA COLOR PLATA SOBRE PRIMER ANTICORROSIVO PLACA METALICA ENTRE PTR Y HUELLA, ESPESOR 1/2" ACABADO CON LACA COLOR PLATA SOBRE PRIMER ANTICORROSIVO 5 5 PLACA ANTIDERRAPANTE CALIBRE 12 DOBLADA A 90° EN LADOS LARGOS, CORTADA A RAS EN LADOS CORTOS ACABADA CON BARNIZ NATURAL EPOXICO MATE MARCO DE ANGULO DE 2"x2"x1/4" 5 5 5 5 5 5 5 BARANDA ESC.:1:25 HUELLA ESC.:1:25 CORTE HUELLA ESC.:1:25

Language	Spanish
Drawing Type	Detail
Category	Stairways
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, construction ladder, degrau, DETAIL, DWG, échelle, escada, escalier, étape, ladder, leiter, metal, metal ladder, prefabricated, staircase, staircase details, stairway, step, stufen, treppe, treppen
