Mezzanine – Details 3D DWG Detail for AutoCAD

Mezzanine – Details 3D DWG Detail for AutoCAD

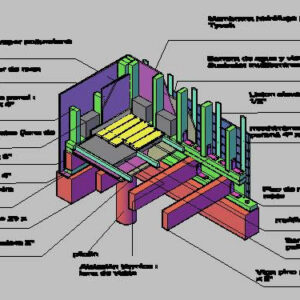

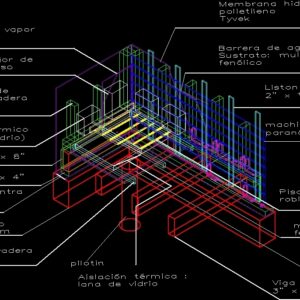

3d Wood Mezzanine – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

tyvek, machined pine parana, nail label, polyethylene hydrophobic membrane, Substrate: phenolic multilaminate, wind water barrier, Panel stile: wood, thermal insulation, polyurethane vapor barrier, plaster interior plasterboard, polyurethane vapor barrier, thermal insulation, wood panel stud, Water barrier wind substrate: phenolic multilaminate, polyethylene membrane tyvek, nail label, machined pine parana, pine beam parana, sill, pilotin, chained beam cm, valance, phenolic multilaminate, vapor barrier: polyurethane, thermal insulation glass wool, nailed strip, wooden floor: oak, moisture barrier: tyvek

Raw text data extracted from CAD file:

TYVEK machimbrado pino parana 6" x 3/4" liston clavadero 2" x 1/2" Membrana hidrofuga polietireno Substrato: multilaminado fenolico Barrera de agua y viento Montante de Panel: madera 2"x 4" Aislante Térmico (lana de vidrio) Barrera de vapor poliuretano Placa interior de roca de yeso placa interior de roca de yeso barrera de vapor poliuretano aislante termico (lana de vidrio) Montante de panel : madera 2" x 4" Barrera de agua y viento Sustrato: multilaminado fenólico Membrana hidrófuga polietileno Tyvek Liston clavadero 2" x 1/2" machimbrado pino paraná 4" x 3/4" Viga pino paraná 3" x 8" Solera 2" x 4" pilotin viga de encadenado 20 x 30 cm cenefa 1" x 8" multilaminado fenólico Barrera de vapor: poliuretano Aislación térmica : lana de vidrio Listón clavadera 2" x 1" Piso de madera: roble Barrera contra humedad: Tyvek

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Glass, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, cover, dach, DETAIL, details, DWG, hangar, lagerschuppen, mezzanine, roof, shed, structure, terrasse, toit, Wood
