Mosque DWG Section for AutoCAD

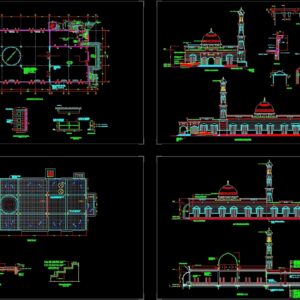

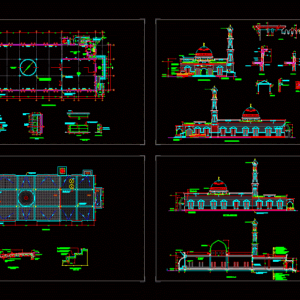

Capacity for 500 people – – plants – sections – facades – dimensions – designations

Drawing labels, details, and other text information extracted from the CAD file:

ground level, ground floor, roof, binder as per approved, ground floor plan, glass mosaic tiles, front elevation, left side elevation, grc screen, groove in plaster, recess in plaster finished, with islamic mosaic tiles, right side elevation, section : x – x, roof plan, s l o p e, projection in plaster, detail – ‘a’, refer detail – ‘a’, detail – ‘b’, stone shield paint system, concrete balusters, inverted beam, carborandium strip, typical steps detail, typical ramp detail, wooden riling and balusters, grooves in plaster, l i w a n, p r a y e r h a l l, porch, book shelves, l a d i e s p r a y e r h a l l, ramp, g.r.c., partition, wall, h.c. toilet, toilet, water, cooler, ablution, lobby, refer detail – ‘b’, f.f.l., floor slab, ablution platform detail, collapsible partition wall with built-in door, mehrab, granite counter top wash basin with mirror, f.g.l., refer detail ‘a’, polyethylene water tank, blockwork, book shelf detail, plan, front view, sectional detail, refer detail ‘c’, detail – ‘c’

Raw text data extracted from CAD file:

\A1;75 \A1;600 \A1;600 \A1;680 \A1;700 \A1;75 \A1;380 \A1;100 \A1;500 \A1;500 \A1;75 \A1;600 \A1;145 \A1;145 \A1;75 \A1;600 \A1;145 \A1;10 \A1;10 \A1;7 \A1;10 \A1;75 \A1;5 \A1;5 \A1;10 \A1;5 \A1;15 \A1;10 \A1;10 \A1;25 \A1;15 \A1;15 \A1;35 \A1;10 \A1;25 \A1;10 \A1;45 \A1;30 \A1;15 \A1;15 \A1;25 \A1;10 \A1;5 \A1;45 \A1;90 \A1;1035 \A1;1000 \A1;1020 \A1;540 \A1;460 \A1;535 \A1;520 \A1;1000 \A1;520 \A1;300 \A1;240 \A1;300 \A1;790 \A1;790 \A1;460 \A1;300 mm. \A1;150 mm. \A1;25 mm. \A1;270 \A1;210 \A1;200 \A1;635 \A1;25 \A1;2070 \A1;560 \A1;25 \A1;575 \A1;750 \A1;575 \A1;560 \A1;760 \A1;760 \A1;315 \A1;10 \A1;750 \A1;635 \A1;25 \A1;635 \A1;25 \A1;2070 \A1;750 \A1;635 \A1;25 \A1;560 \A1;25 \A1;4890 \A1;575 \A1;750 \A1;575 \A1;560 \A1;200 \A1;760 \A1;315 \A1;10 \A1;280 \A1;290 \A1;440 \A1;DOME ABOVE (700 d) \A1;35 \A1;240 \A1;270 \A1;240 \A1;25 \A1;10 \A1;560 \A1;22 \A1;150 \A1;600 \A1;300 \A1;150 \A1;500 \A1;400 \A1;150 \A1;150 \A1;30 \A1;280 \A1;25 \A1;10 \A1;35 \A1;185 \A1;165 \A1;20 \A1;20 \A1;10 \A1;30 \A1;60 \A1;30 \A1;35 \A1;15 \A1;15 \A1;30 \A1;110 \A1;15 \A1;15 \A1;30 \A1;10 \A1;60 \A1;60 \A1;145 \A1;100 \A1;20 \A1;20 \A1;65 \A1;275 \A1;245 \A1;AS REQUIRED (MAX. 7.00 M.) \A1;40 \A1;10 \A1;50 \A1;20 \A1;20 \A1;280 \A1;60 \A1;60 \A1;30 \A1;20 \A1;10 \A1;80 \A1;10 \A1;35 \A1;35 \A1;30 \A1;200 \A1;100 \A1;100 \A1;10 \A1;35 \A1;35 \A1;30 \A1;25 \A1;25 \A1;275 \A1;275 \A1;245 \A1;275 \A1;245 \A1;75 \A1;17 \A1;7 \A1;10 \A1;10 \A1;5 \A1;20 \A1;7 \A1;10 GROUND LEVEL GROUND FLOOR ROOF 5 5 * TERRAZZO TILE FLOORING * FOUNDATION AS PER STRUCTURAL DETAIL. 5 5 FOR DETAIL OF DOME REFER DRG. NO. AR-06 5 5 5 5 20 mm. EXPANSION JOINT WITH FILLER BOARD AND POLYSULPHIDE SEALANT * PLAIN WHITE CEMENT TILES * CEMENT SCREEDING 10 cm. THICK * RIDGE INSULATION BOARD 5 cm. THICK * WATER PROOFING INSULATION BINDER AS PER APPROVED * LIGHT WEIGHT ROOF SCREEDING LAID TO FALL * R.C.C. SLAB AS PER STRUCTURAL DETAIL * TEXTURED PAINT TO CEILING SOFFIT GROUND FLOOR PLAN FOR CAVITY WALL DETAIL (TYP) REFER DRG. NO. AR-02 5 5 GLASS MOSAIC TILES FRONT ELEVATION LEFT SIDE ELEVATION GLASS MOSAIC TILES 5 cm. PROJECTION IN PLASTER @ 40 cm. (TYP.) GRC SCREEN GROOVE IN PLASTER RECESS IN PLASTER FINISHED WITH ISLAMIC MOSAIC TILES AT 120 cm. A.F.G.L. RIGHT SIDE ELEVATION SECTION : X – X ROOF PLAN S l o p e S l o p e 110 d RWP THROUGH BEAM FOR RAIN WATER (TYP.) S l o p e GARGOYLES FOR RAIN WATER OUTLET (TYP.) REFER DETAIL S l o p e S l o p e S l o p e S l o p e S l o p e S l o p e S l o p e S l o p e S l o p e S l o p e S l o p e S l o p e S l o p e S l o p e S l o p e + 575 LVL + 455 LVL + 675 LVL + 455 LVL + 675 LVL 20 mm. EXPANSION JOINT WITH FILLER BOARD AND POLYSULPHIDE SEALANT GROOVES IN PLASTER @ 40 cm. (TYP.) GROUND LEVEL GROUND FLOOR ROOF 5 5 5 GLASS MOSAIC TILES 5 GLASS MOSAIC TILES GLASS MOSAIC TILES GROUND LEVEL GROUND FLOOR ROOF 5 5 5 5 5 5 5 5 R-25 5 5 10 5 5 PROJECTION IN PLASTER Y8 @ 15 C/C 2 Y 8 4 Y 12 1Y10 5 5 5 5 5 35 5 5 5 5 5 5 5 5 5 5 R-10 2 2 1 1 SECTION : 2-2 SECTION : 1-1 DETAIL – ‘A’ REFER DETAIL – ‘A’ DETAIL – ‘B’ RECESS IN PLASTER FINISHED STONE SHIELD PAINT SYSTEM CONCRETE BALUSTERS INVERTED BEAM INVERTED BEAM 5 5 5 5 5 <> <> <> 5 1000 5 5 5 5 5 5 5 STEEL CAT LADDER FOR ROOF ACCESS (AS PER APPROVED) CARBORANDIUM STRIP 20 mm. THICK BLACK GALAXY GRANITE ON 20 mm. THICK CEMENT SAND SCREED 30 mm. THICK BLACK GALAXY GRANITE ON 50 mm. THICK CEMENT SAND SCREED 300 mm. 150 mm. 25 mm. 20 x 10 mm. (TYP.) TYPICAL STEPS DETAIL SCALE – 1 : 25 TYPICAL RAMP DETAIL SCALE – 1 : 25 WOODEN RILING AND BALUSTERS RECESS IN PLASTER FINISHED STONE SHIELD PAINT SYSTEM RECESS IN PLASTER FINISHED WITH ISLAMIC MOSAIC TILES GROOVES IN PLASTER 1 2 3 4 5 6 9 10 11 1 2 3 4 5 6 9 10 11 D C B A D C B A 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 <> DOME ABOVE (700 d) 5 5 5 5 5 5 8 5 L I W A N 1500 x 1365 P R A Y E R H A L L 3000 x 2000 PORCH 300 x 840 7 5 Book Shelves X 20 mm. EXPANSION JOINT WITH FILLER BOARD AND POLYSULPHIDE SEALANT (FOR DETAIL REFER DRG. NO. ST-01) L A D I E S P R A Y E R H A L L 1130 x 615 RAMP 5 5 G.R.C. RAMP 5 + 25 LVL + 75 LVL + 75 LVL + 75 LVL 5 R 200 SLOPE 1 : 12 Book Shelves Book Shelves Book Shelves Book Shelves Book Shelves Book Shelves RAMP <> 5 + 50 LVL 5 SLOPE 1 : 12 RAMP 5 5 + 75 LVL <> PARTITION WALL X W1 W1 D D1 D2 D3 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 5 5 Book Shelves Book Shelves Book Shelves W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 W1 5 D W1 W1 Book Shelves 5 10 mm. DROP 5 <> STEEL CAT LADDER FOR ROOF ACCESS (AS PER APPROVED) 5 D3 D4 D5 H.C. TOILET 150 x 170 TOILET 120 x 170 WATER COOLER ABLUTION 435 x 200 LOBBY 140 x 305 10 mm. DROP 10 mm. DROP 5 GLASS MOSAIC TILES REFER DETAIL – ‘B’ W1 W1 UP 2.00 M. HIGH COMPOUND WALL (REFER SITE PLAN) 2.00 M. HIGH COMPOUND WALL (REFER SITE PLAN) CONCRETE WITH A-142 MESH 200 x 200 x 8 mm. ANTI-SLIP VITRIFIED CERAMIC TILES F.F.L. 5 5 5 30 x 30 x 25 cm. CONCRETE PLATFORM WITH GRANITE TOP FLOOR SLAB 5 5 200 x 200 x 8 mm. ANTI-SLIP VITRIFIED CERAMIC TILES 5 5 5 5 5 1 1 ABLUTION PLATFORM DETAIL SECTION : 1 – 1 SCALE – 1 : 25 SCALE – 1 : 25 110 5 5 5 20 cm. THK. 1.20 M. HIGH BLOCKWALL DUMMY WINDOW WITH GRC (TYP.) DUMMY WINDOW WITH GRC (TYP.) 5 +60 LVL 110 \U+2205 RWP THROUGH BEAM FOR RAIN WATER (TYP.) S l o p e S l o p e S l o p e S l o p e BEAM AS / STRUCT. SLAB AS / STRUCT. Y10 @ 20 C/C Y8 @ 15 C/C Y10 @ 20 C/C Y8 @ 15 C/C 60 BEAM AS / STRUCT. SLAB AS / STRUCT. 60 5 5 COLLAPSIBLE PARTITION WALL WITH BUILT-IN DOOR 5 5 5 MEHRAB GRANITE COUNTER TOP WASH BASIN WITH MIRROR 5 5 MECHANICALLY COMPACTED EARTH TO 98 % OF MAX. PROCTOR DENSITY Y8 @ 15 C/C 10 cm. THK. BLINDING CONCRETE GRADE-10 20 cm. THK. SOLID BLOCKWORK 40 10 50 20 Y8 @ 20 C/C 4 Y 12 20 10 x 30 mm. THK. TERRAZZO TILES FIXED ON 20 cm. THK. MORTAR (CONTRACTOR SHOULD BUILD AS PER CONSULTANTS APPROVAL) AS / REQD. (MAX. 50 cm.) AS REQUIRED (MAX. 7.00 M.) F.G.L. F.F.L. COLLAPSIBLE PARTITION WALL WITH BUILT-IN DOOR 5 5 ALL COLUMNS IN PRAYER HALL AND LIWAN AREA TO BE FINISHED WITH 200 x 300 mm. CERAMIC ISLAMIC TILES UPTO 900 mm. AFFL WITH 100 mm. HIGH CONTRASTING BORDER (DADO TILE) TYP. 300 mm. HIGH GYPSUM CORNICE ALONG THE PERIPHERAL WALL REFER DETAIL ‘A’ S/U S/U S/U S/U S/U S/U S/U S/U S/U S/U S/U S/U S/U S/U S/U S/U S/U S/U S/U S/U S/U S/U S/U S/U 20 cm. THK. BLOCKWORK 200 x 300 x 8 mm. GLAZED CERAMIC WALL TILES 5 5 5 20 x 20 x 10 cm. DEEP RECESS FOR SOAP ABOVE EVERY TAP (FINISHED WITH CERAMIC TILES ABOVE EVERY TAP) 5 2 NOS. 400 GALLON DOUBLE SKIN POLYETHYLENE WATER TANK * SCREEDING * 150 mm. THICK P.C.C 1 : 3 : 6 WITH A-142 MESH * POLYTHENE SHEET (1000 GAUGE) * 50 mm. SAND FILLING. * 150 mm. THICK DRY RUBBLE PACKING * WELL COMPACTED EARTH 25 mm. THK. BLOCKBOARD LAMINATED ON BOTH SIDES WITH 20 x 25 MW LIPPING 5 5 5 5 5 5 BLOCKWORK F.F.L. 5 5 5 5 5 5 F.F.L. BOOK SHELF DETAIL SCALE – 1 : 25 PLAN FRONT VIEW SECTIONAL DETAIL 25 mm. THK. BLOCKBOARD LAMINATED ON BOTH SIDES WITH 20 x 25 MW LIPPING 20 x 25 mm. M.W. LIPPING 25 20 x 25 mm. M.W. SUPPORT 5 275 5 5 5 5 5 REFER DETAIL ‘C’ DETAIL – ‘C’ Y8 @ 20 C/C 2 Y 8 4 Y 10 5 5 5 5 5 5 5 5
