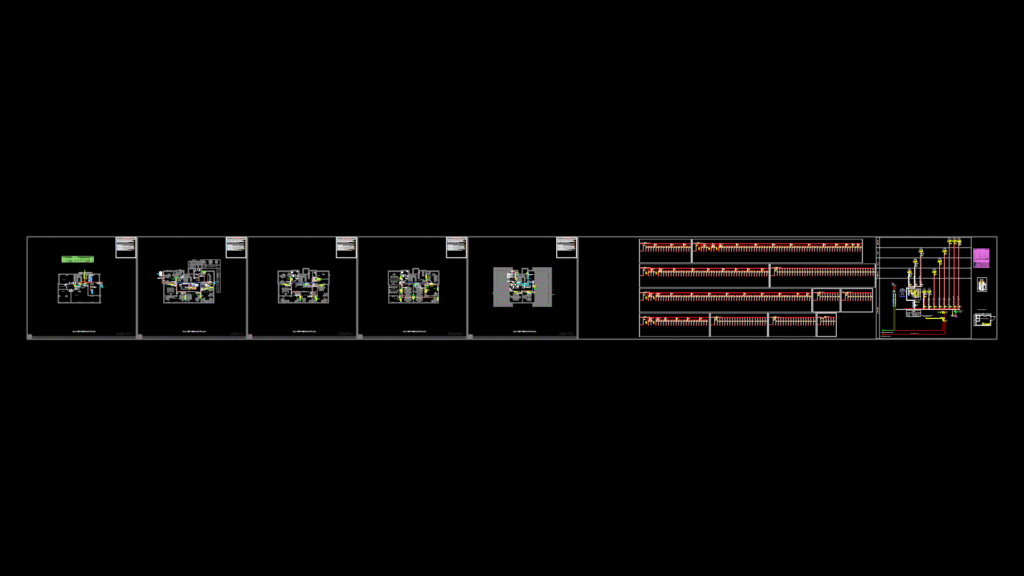

Comprehensive electrical power and mechanical installation plan for Building No. 2 (SAMÜ 2NOLU BİNA) spanning multiple floors. The drawing detials power distribution systems with main distribution panels (ADP), floor distribution panels, and UPS infrastructure.
Electrical System Features:
- Main power supply: 3×150+70mm² NYY cables from transformer and generator
- Main distribution panel with 4x320A thermal magnetic circuit breakers
- 30kVA UPS system with 10-minute battery backup
- Cable distribution shafts with specified cable routes using N2XH and N2XH FE180/PH90 fire-resistant cables
- Floor-specific distribution panels including BK-DP, ZK-DP, 1K-DP, 2K-DP, and ÇK-DP
Mechanical Systems:
- VRF (Variable Refrigerant Flow) HVAC system with wall-mounted indoor units (0.08kW each)
- Outdoor unit: 33kW electrical consumption, 117kW cooling capacity, 132kW heating capacity
- Wireless controllers for indoor units
Fire Safety:
- Fire water storage tank (15m³)
- Two main fire pumps (12m³/h, 80mSS, 5.5kW each)
- Jockey pump (3m³/h, 90mSS, 2.5kW)
The plan incorporates circuit protection devices, including automatic circuit breakers (AOS) and residual current protective relays (KAKR). All panels feature 220V/380V 50Hz power supply and include proper grounding systems with equipotential bonding bars.
