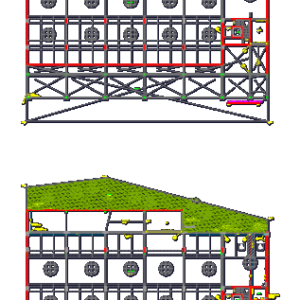

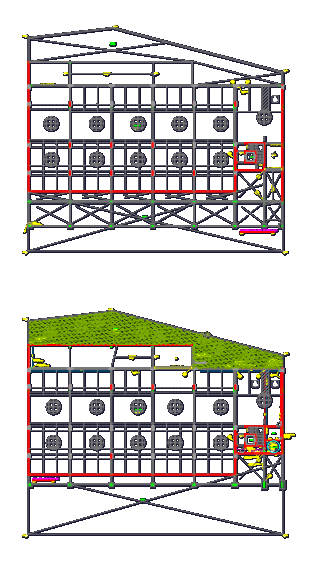

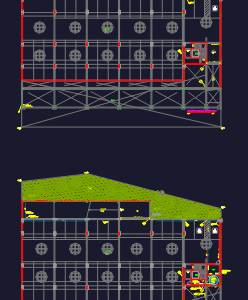

7-level slab formwork set plus basements. covers structural layout for beams/columns (typ. 20cm thk) and plumbing systems per NBR 8160. includes water supply poiints and pumping details. dims in cm, dia. in mm. Plantas de forma da 1ª à 7ª laje e subsolos com detalhes de hidráulica.
Multi-Level Slab Formwork DWG
