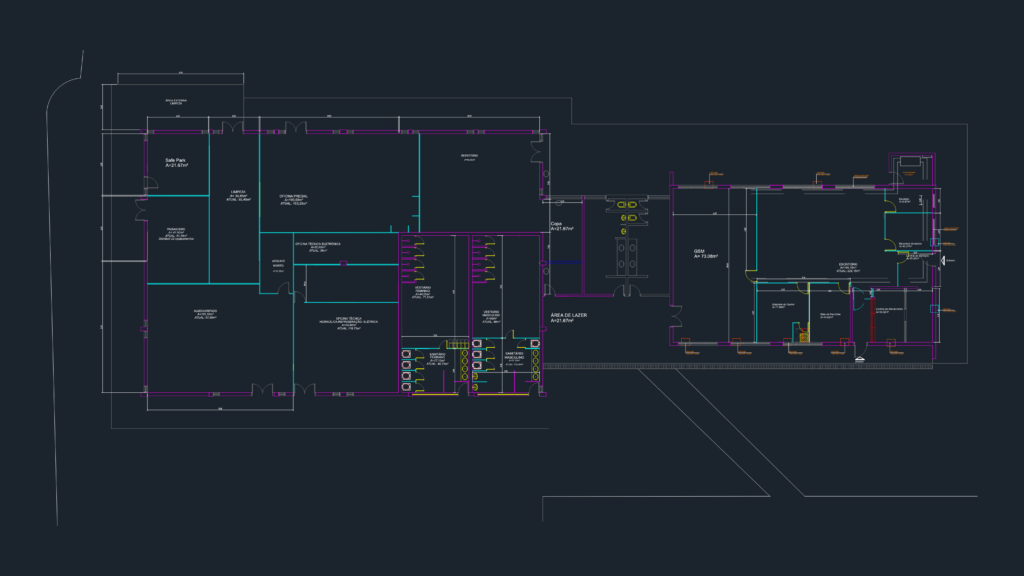

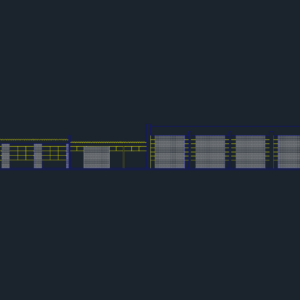

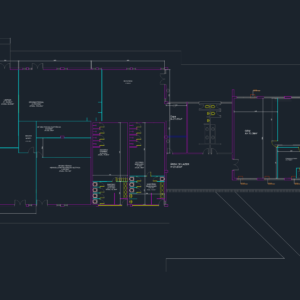

Multipurpose pavilion architectural set for a university campus maintenance facility. Floor plan, north & south elevations, and four cross-sections are all here. We’ve included specific zones for electronic and hydraulic workshops, locker rooms, and administrative offices with area annotations. Projeto básico de pavilhão multiuso contendo planta baixa, cortes e fachadas.
Multipurpose pavilion floor plan and elevations CAD
