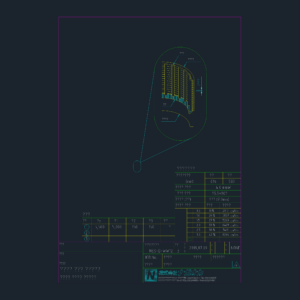

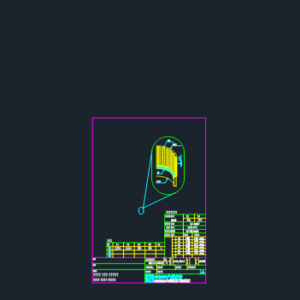

Nagaoka WW-60C series well screen detail, 600A diameter, constructed from galvanized low carbon steel. The drawing provides a plan view and elevation with sections detailing internal rod and wire configuration. Specs include 4.0 mmW wire and φ5.5 rods (80 qty) with STK joint pipes at 7.9mm thk. Dimensional data indicates a screen length of 5,000mm and overall length of 5,500mm. Slot opening rstes are specified between 11% and 42% for various collection requirements. Additional fabrication details cover welding bevels, t6 patches, and 25×12 anti-slip components.ナガオカ ウェル スクリーン ６００Ａ 低炭素鋼 亜鉛メッキ ＷＷ－６０Ｃ スクリーン仕様
Nagaoka 600A galvanized low carbon steel well screen assembly
