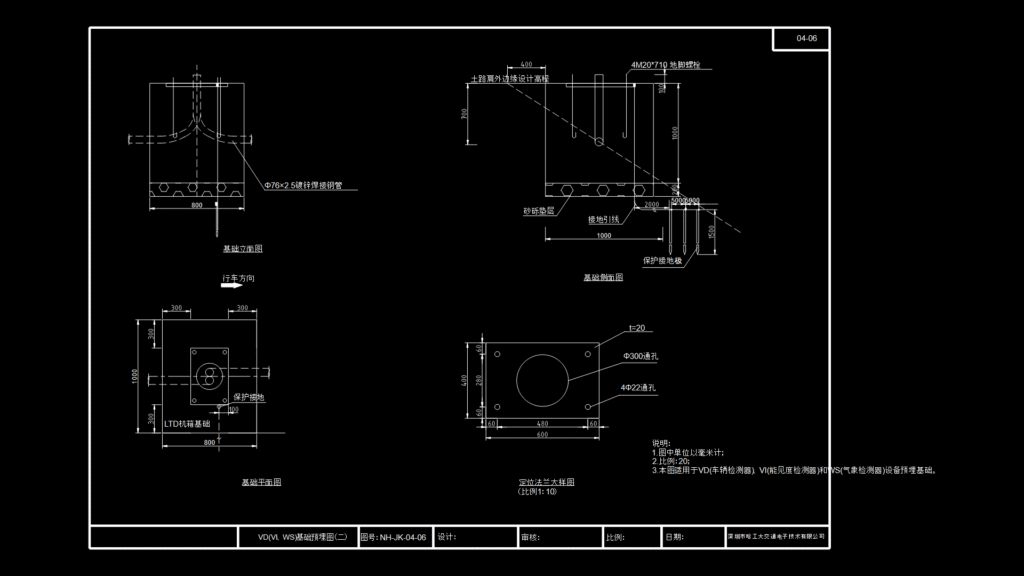

Foundation embedment drawing for VDVI/WS network infrastructure systems showing detailed installation specifications. The plan includes multiple views with precise dimensions: foundation front, basically, views, side views, and mounting plate details. Key specifications include:
Foundation Components:
– Φ76×2.5 mm steel connecting pipes (800 mm width dimension)
– Equipment grounding points with protective grounding terminals
– LTD component foundation base (800×1000 mm)
– Connection wiring specifications with 50 mm spacing
Mounting Details:
– Fixed mounting plate (600×600 mm) with Φ300 mm central opening
– Four 22 mm corner bolt holes for secure attachment
– M20 equipment mounting bolts
– Grounding connection terminals with protective ground wires
The drawing specifies installation requirements for network equipment including routers, IBM compatible systems, and laser printers with proper grounding and connection specifications. All dimensions are in millimeters with foundation designs suitable for protecting sensitive electronic infrastructure.
