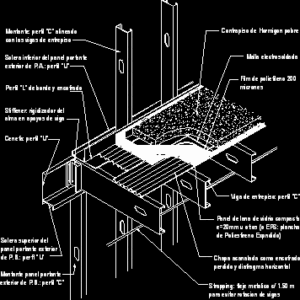

Panel Detail – Drop ceiling

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

stiffener: web stiffener on beam supports, compact glass wool panel other eps: polystyrene sheet, polyethylene film microns, poor concrete subfloor, welded Mesh, top panel of outer carrier panel: profile, external carrier:, valance: profile, sheet corrugated as formwork lost horizontal diaphragm, strapping: metal strip to prevent rotating beams, mezzanine beam: profile, lower base of outer carrier panel: profile, formwork edge profile, upright: profile aligned with mezzanine beams

Raw text data extracted from CAD file:

Stiffener: rigidizador del alma en apoyos de viga Panel de lana de vidrio compacta e=20mm u otros (o EPS: plancha de Poliestireno Expndido) Film de polietileno 200 micrones Contrapiso de Hormigon pobre Malla electrosoldada Solera superior del panel portante exterior de P.B.: perfil "U" Montante panel portante exterior de P.B.: perfil "C" Cenefa: perfil "U" Chapa acanalada como encofrado perdido y diafragma horizontal Strapping: fleje metalico c/ 1.50 m para evitar rotacion de vigas Viga de entrepiso: perfil "C" Solera inferior del panel portante exterior de P.A.: perfil "U" Perfil "L" de borde y encofrado Montante: perfil "C" alineado con las vigas de entrepiso

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Glass, Other
Measurement Units
Footprint Area
Building Features
Tags	adobe, autocad, bausystem, ceiling, construction system, covintec, DETAIL, drop, DWG, earth lightened, erde beleuchtet, losacero, panel, plywood, sperrholz, stahlrahmen, steel framing, système de construction, terre s
