Parts Docking DWG Block for AutoCAD

Parts Docking DWG Block for AutoCAD

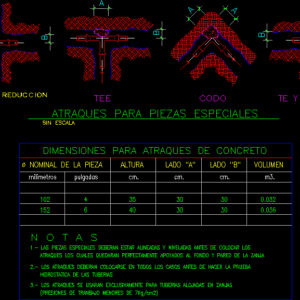

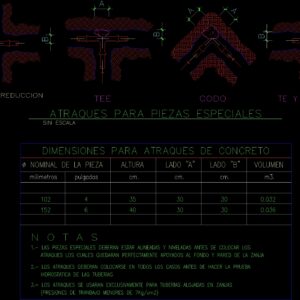

Special parts for pipe.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Cross with reduction, Berths should be placed in all cases before taking the test, Moorings shall be used exclusively for pipes housed in trenches, The special parts must be aligned level before placing the parts, Berths which would be perfectly supported to the bottom wall of the trench, Berths for special pieces, Dimensions for concrete berths, Of the part, tee, Of less than, Hydrostatic piping, Millimeters, unscaled, Inches, height, Cm., Cm., side, You blindfold, elbow, Cm., side, volume

Raw text data extracted from CAD file:

A A B A A A A B A B B \A1;A \A1;A \A1;B CRUZ CON REDUCCION A A -41248.86750113194 2.- LOS ATRAQUES DEBERAN COLOCARSE EN TODOS LOS CASOS ANTES DE HACER LA PRUEBA 3.- LOS ATRAQUES SE USARAN EXCLUSIVAMENTE PARA TUBERIAS ALOJADAS EN ZANJAS 1.- LAS PIEZAS ESPECIALES DEBERAN ESTAR ALINEADAS Y NIVELADAS ANTES DE COLOCAR LOS ATRAQUES LOS CUALES QUEDARAN PERFECTAMENTE APOYADOS AL FONDO Y PARED DE LA ZANJA ATRAQUES PARA PIEZAS ESPECIALES DIMENSIONES PARA ATRAQUES DE CONCRETO -41248.86750113194 d NOMINAL DE LA PIEZA TEE (PRESIONES DE TRANBAJO MENORES DE 7Kg/cm2) HIDROSTATICA DE LAS TUBERIAS B milimetros SIN ESCALA N O T A S 102 152 4 6 pulgadas 35 ALTURA cm. 40 -41248.86750113194 30 cm. 30 LADO "A" TE Y TAPA CIEGA CODO -41248.86750113194 30 cm. 30 LADO "B" -41248.86750113194 VOLUMEN m3. 0.032 0.036 -41248.86750113194 -41248.86750113194 -41248.86750113194

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, block, DWG, einrichtungen, facilities, gas, gesundheit, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, parts, pipe, provision, special, wasser bestimmung, water
