PIP – Paso Inferior Peatonal

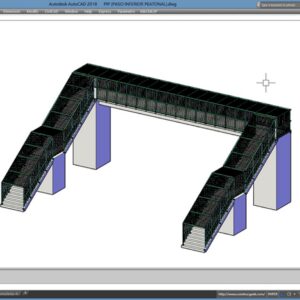

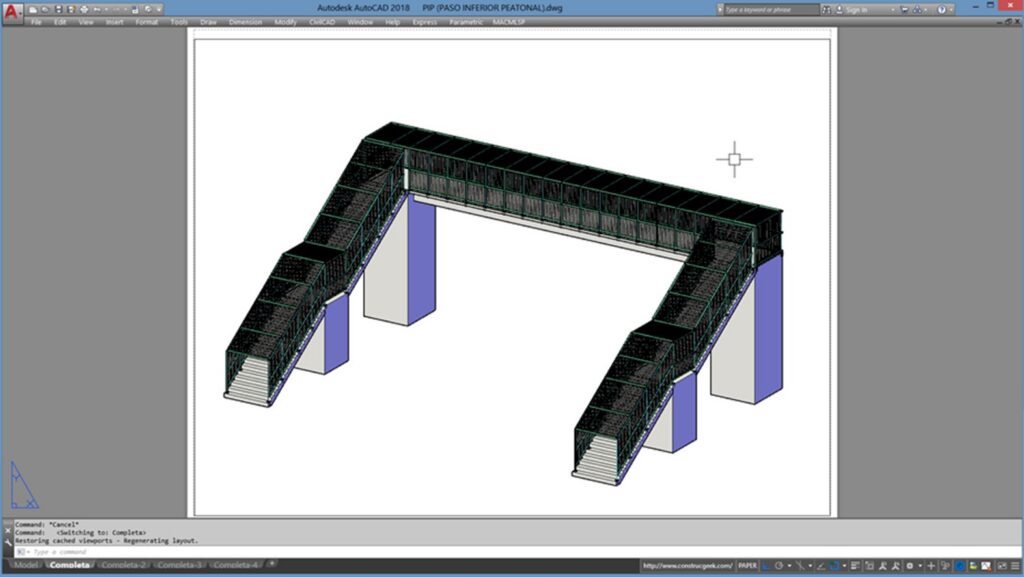

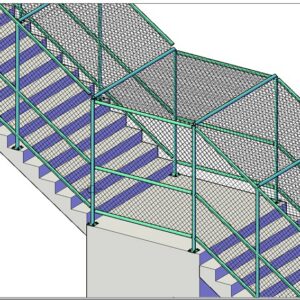

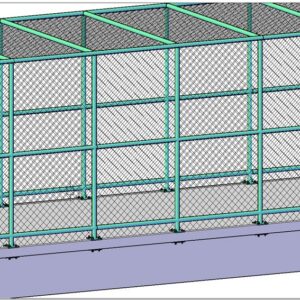

It is a general 3D model of a PIP – Pedestrian Underpass, concrete structure with a cyclone mesh cage, units in centimeters. Useful for generating sketches in geometric surveys.
Es un modelo en 3D general de un PIP – Paso Inferior Peatonal, estructura de concreto con jaula tipo malla ciclónica, unidades en centímetros. Útil para generar croquis en levantamientos geométricos .
| Language | English |
| Drawing Type | Model |
| Category | Roads, Bridges and Dams |
| Additional Screenshots |
   |
| File Type | dwg |
| Materials | N/A |
| Measurement Units | Metric |
| Footprint Area | 50 - 149 m² (538.2 - 1603.8 ft²) |
| Building Features | |
| Tags | PIP - Paso Inferior Peatonal |
