Platafoma Steel 3D DWG Model for AutoCAD

Platafoma Steel 3D DWG Model for AutoCAD

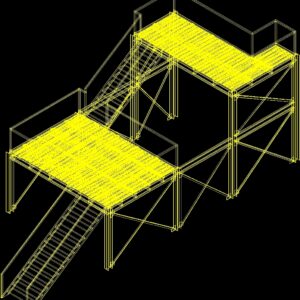

3d modeling Model axonometric solids without textures – Plants info

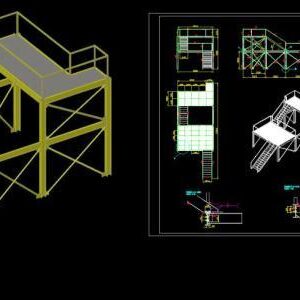

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

University technical federico santa maria sede viña del mar, Xxxxxx, Location, course:, Bastiam mancilla salvade, Caren carmona vega, platform, Designers, revised, Approved, client:, title, Esc:, Date: may, Santiago geywitz bernal, Plan of structure with isometry details, Of plan:, Design department manofactura, subject:, structure, detail, detail, Detail in court, Detail in court, detail, brand, Vip, Chn, C.r, DC, Aad, DC, Aad, DC, Aad, Caa, Caa, P.ancl, P. Hex, quantity, designation, beam, column, Rectangular profile, Square profile, Angular profile of equal wings, griddle, Anchor bolt, Hex bolt l:, Regilla, material, observations, Solemn, Ex umbra

Raw text data extracted from CAD file:

3190 2000 2812 3500 5000 13523 1244 2000 34° 34° 1000 4000 4944 1100 88 60 55 100 176 270 180 100 60 53 120 100 60 \A1;4993.9953 \A1;4994.0000 66,59 4994 13523,95 4625 1050 2625 1050 3944 1100 120 1000 700 1000 700 700 1000 1000 1000 1000 1000 1000 2500 4500 1150 880 600 550 1000 1760 1000 60 55 55 200 \W9.28417; UNIVERSIDAD TÉCNICA FEDERICO SANTA MARÍA \W9.91506; SEDE VIÑA DEL MAR \W8.87331; XXXXXX UBICACIÓN Curso: 371 Bastiam Mancilla Salvade CAREN CARMONA VEGA Plataforma \W9.27835; \W8.69072; Proyectistas \W6.49227; Reviso \W6.41237; Aprobo \W6.26289; Cliente: Titulo 30/may/2013 Esc: 1 : 75 Fecha: 30 mayo 2013 SANTIAGO GEYWITZ BERNAL Plano de estructura con isometria y detalles N° de Plano: Departamento de Diseño y Manofactura D I M A Asignatura: ESTRUCTURA 1 de 4 5 5 5 5 5000 13523 1244 5 5 5 1000 4000 5 1100 A Detalle A ESC= 1:10 B 5 5 5 5 5 Detalle B ESC= 1:10 5 5 5 C 5 5 5 5 Detalle A en corte ESC= 1:10 D 5 5 5 700 E Detalle E en corte ESC= 1:25 Detalle D en corte ESC= 1:10 5 5 5 1000 5 5 5 5 1000 5 5 5 5 5 5 5 5 5 Detalle F ESC= 1:10 F 5 5 55 5 Marca V.IP 2 V.IP V.IP V.IP V.IP V.IP V.IP V.IP V.IP V.IP 2 V.IP V.IP 2 C.HN C.HN C.HN C.HN C.HN C.HN C.HN C.HN C.R C.R C.R C.R C.R C.C C.C C.C C.C C.C C.C C.C C.C C.C C.C C.C C.C C.C A.AD A.AD A.AD A.AD A.AD A.AD A.AD C.C A.AD C.C A.AD 2 A.AD 2 A.AD 2 A.AD 2 A.AD 2 A.AD 2 C.AA C.AA C.AA C.AA C.AA C.AA C.AA C.AA P P P P P P P P P P P P C.AA C.AA P P.ancl P.ancl P.ancl P. hex P. hex P. hex P. hex P. hex P. hex P. hex P. hex Cantidad 14 20 8 23 10 16 2 1 24 80 Designacion Viga I 250x100x12mm Viga I 200x100x12mm Columna H 200x200x12mm Perfil rectangular 135x50x5mm Perfil cuadrado 50x50.2.5mm Perfil angular de alas iguales 65x65x3.5 Perfil angular de alas iguales 80x80x5mm Plancha esp:5mm Perno de anclaje M16 l:330mm anch:70 Perno hexagonal M16 l: 80 Regilla Material A - 36 A - 36 A - 36 A - 36 A - 36 A - 36 A - 36 A - 36 A - 36 A - 36 Observaciones IN SOLEM EX UMBRA
