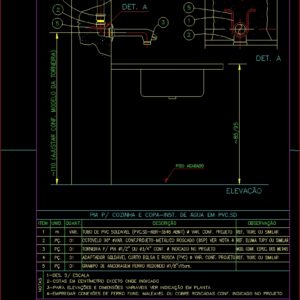

Plumbing Fixtures Of Kitchen DWG Detail for AutoCAD

Detail installation kitchen plumbing fixtures

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

cvrd, leaf:, rev .:, cvrd:, minerconsult:, iron castings. maleavel or copper threaded conf. indicated in the project., Variable dimensions, scale, in centimeter except where indicated, grades, sink water kitchen in pvc.sd, fill cim mortar. sand, finished floor, round iron anchor clip, adapter weldable short bag var. conf. project, faucet sink or conf. indicated in the project, elbow øvar. threaded see note, welding pvc tube var. conf. project, conf. model of, quant., var., Praça., Praça., item, Items., description, det., ref. tiger or similar, ref. eluma tupy or similar, ref. tiger or similar, elevation, Note, det., mod. conf. spec. of metals

Raw text data extracted from CAD file:

CVRD FOLHA: REV.: N° CVRD: N° MINERCONSULT: 4-EMPREGAR CONEXÕES DE FERRO FUND. MALEAVEL OU COBRE ROSCADAS CONF. INDICADO NO PROJETO. 3-PARA ELEVAÇÕES E DIMENSÕES VARIAVEIS VER INDICAÇÃO EM PLANTA 1-DES. S/ ESCALA 2-COTAS EM CENTÍMETRO EXCETO ONDE INDICADO NOTAS PIA P/ COZINHA E COPA-INST. DE ÁGUA EM PVC.SD PREENCHER C/ ARGAMASSA DE CIM. E AREIA 1:3 5 1 2 PISO ACABADO GRAMPO DE ANCORAGEM FERRO REDONDO Ø1/8''x15cm. ADAPTADOR SOLDÁVEL CURTO BOLSA E ROSCA (PVC) Ø VAR. CONF. PROJETO TORNEIRA P/ PIA Ø1/2'' OU Ø3/4'' CONF. Ø INDICADO NO PROJETO COTOVELO 90º ØVAR. CONF.PROJETO-METÁLICO ROSCADO (BSP) VER NOTA 4 TUBO DE PVC SOLDAVEL (PVC.SD-NBR-5648 ABNT) Ø VAR. CONF. PROJETO ~110 (AJUSTAR CONF. MODELO DA TORNEIRA) QUANT. 01 01 01 01 VAR. PÇ. 5 m. PÇ. PÇ. PÇ. 4 3 2 1 ITEM UNID. DESCRIÇÃO 4 5 2 1 DET. A 3 REF. TIGRE OU SIMILAR REF. ELUMA TUPY OU SIMILAR REF. TIGRE OU SIMILAR ELEVACÃO ~85/95 OBSERVAÇÃO DET. A MOD. CONF. ESPEC. DOS METAIS

Language	Portuguese
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, DETAIL, DWG, einrichtungen, facilities, fixtures, gas, gesundheit, installation, kitchen, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, plumbing, provision, wasser bestimmung, water
