Pluvial Funnel DWG Section for AutoCAD

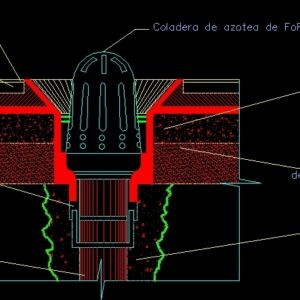

Section in detail of strainer located in a flagstone

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Placed in petatillo, Brushed, Helvex fluffy roof colander, Mixing warping, proportion, Caliche stuffing, Of cm of minimum thickness, P.v.c power adapter, Tube p: vc., Pipe reception, With mixing ratio

Raw text data extracted from CAD file:

Enladrillado, colocado en petatillo Escobillado Coladera de azotea de FoFo HELVEX Entortado de mezcla cemento-cal-arena Proporción 1:1:6 Relleno de caliche de 5 cm de espesor mínimo Adaptador de Fo a P.V.C. Tubo P:VC. Recibimiento de tubería con mezcla cal-arena proporción 1:3
