Pool Section DWG Section for AutoCAD

Pool Section DWG Section for AutoCAD

Concrete – details with technical specifications

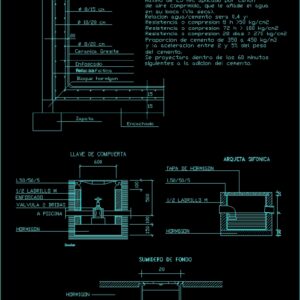

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

concrete pool section shotcrete, in his mouth, relationship will be and:, compressive strength, compressive strength days, proportion of cement, the portland cement concrete of arid, of air that adds water, maximum applied by cannon, the acceleration between the weight, will be projected within minutes, stuck up, mesh, asphalt screen, sloping, ceramics gresite, gate key, concrete, pool, flange valve, stuck up, brick, section, concrete, brick, concrete cap, siphon casing, bottom sink, concrete, sloping, Cutting key, of the cement., following the addition of the cement., shoe, lost formwork, concrete block

Raw text data extracted from CAD file:

d 8/20 cm d 8/15 cm d 10/20 cm 20 15 15 2 d 12 SECCION PISCINA HORMIGON GUNITADO en su boca (Via seca). Relacion agua/cemento sera 0,4 y: Resistencia o compresion 8 h >50 kg/cm2 Resistencia o compresion 72 h > 180 kg/cm2 Resistencia o compresion 28 dias > 270 kg/cm2 Proporcion de cemento de 350 a 450 kg/m3 El hormigon de Cemento Portland de arido de aire comprimido, que le añade el agua maximo de 25 mm, aplicado por cañon y la aceleracion entre 2 y 5% del peso Se proyectara dentro de los 60 minutos Enfoscado Mallazo Tela asfaltica Encachado Ceramica Gresite LLAVE DE COMPUERTA HORMIGON A PISCINA VALVULA 2 BRIDAS ENFOSCADO 1/2 LADRILLO M Seccion L50/50/5 500 100 150 600 100 HORMIGON 1/2 LADRILLO M L50/50/5 TAPA DE HORMIGON ARQUETA SIFONICA P 100 50 SUMIDERO DE FONDO HORMIGON ENCACHADO A LLAVE DE CORTE 20 del cemento. siguientes a la adicion del cemento. Zapata Encofrado perdido Bloque hormigon

Language	Spanish
Drawing Type	Section
Category	Pools & Swimming Pools
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features	A/C, Pool
Tags	autocad, concrete, details, DWG, piscina, piscine, POOL, schwimmbad, section, specifications, swimming pool, technical
