Psychometric ( Graphic) Letter DWG Block for AutoCAD

Psychometric ( Graphic) Letter DWG Block for AutoCAD

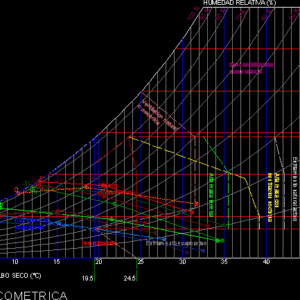

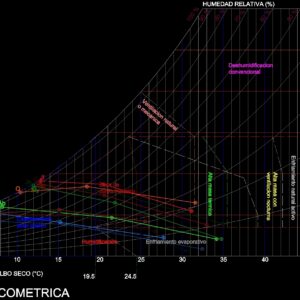

Chart for calculting the degree of comfort and air conditioning systems

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Conventional active solar heating, Passive solar heating, Humidification, Thermal comfort zone, Mechanical ventilation, Evaporative cooling, High thermal mass, High mass with night ventilation, Active natural cooling, Conventional air conditioning, Conventional dehumidification, Dry bulb temperature, Absolute humidity, RH, Psychometric chart

Raw text data extracted from CAD file:

D 30 25 20 15 10 5 0 0 15 10 25 20 5 30 35 40 45 50 Calentamiento solar activo y convencional 19.5 24.5 Calentamiento solar pasivo Humidificacion Zona de confort termico Ventilacion natural o mecanica Enfriamiento evaporativo Alta masa termica Alta masa con ventilacion nocturna Enfriamiento natural activo Aire Acondicionado Convencional Deshumidificacion convencional TEMPERATURA DE BULBO SECO (°C) HUMEDAD ABSOLUTA (g/Kg) HUMEDAD RELATIVA (%) 100 % CARTA PSICOMETRICA 90 % 80 % 70 % 60 % 50 % 40 % 30 % 20 % 10 % E F Mr Ab My Jl Ag S O N D Jn

Language	Spanish
Drawing Type	Block
Category	Climate Conditioning
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	air, autocad, berechnung von klimaanlagen, block, calculation of air conditioning, cálculo de ar condicionado, chart, comfort, conditioning., degree, DWG, graphic, le calcul de la climatisation, letter, systems
