Rain Water Semicircular Canal 8in DWG Block for AutoCAD

Rain Water Semicircular Canal 8in DWG Block for AutoCAD

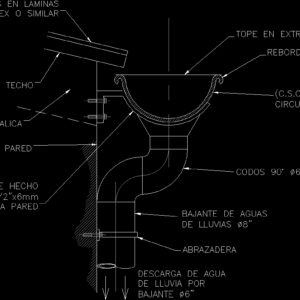

Channel for stormwater drainage, a semicircular diameter 8

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

rainwater downpipe, semi circular channel, bent flange, base support made of bolted wall plate, wall, ceiling, similar isotex sheet ceilings, clamp, elbows, metal beam, rainwater discharge by downpipe, extreme stop

Raw text data extracted from CAD file:

BAJANTE DE AGUAS DE LLUVIAS d8" (C.S.C.) CANAL SEMI CIRCULAR d8" REBORDE DOBLADO APOYO BASE HECHO DE PLETINA 1/2"x6mm ATORNILLADA A PARED PARED TECHO TECHOS EN LAMINAS ISOTEX O SIMILAR ABRAZADERA CODOS 90° d6" VIGA METALICA DESCARGA DE AGUA DE LLUVIA POR BAJANTE d6" TOPE EN EXTREMO
