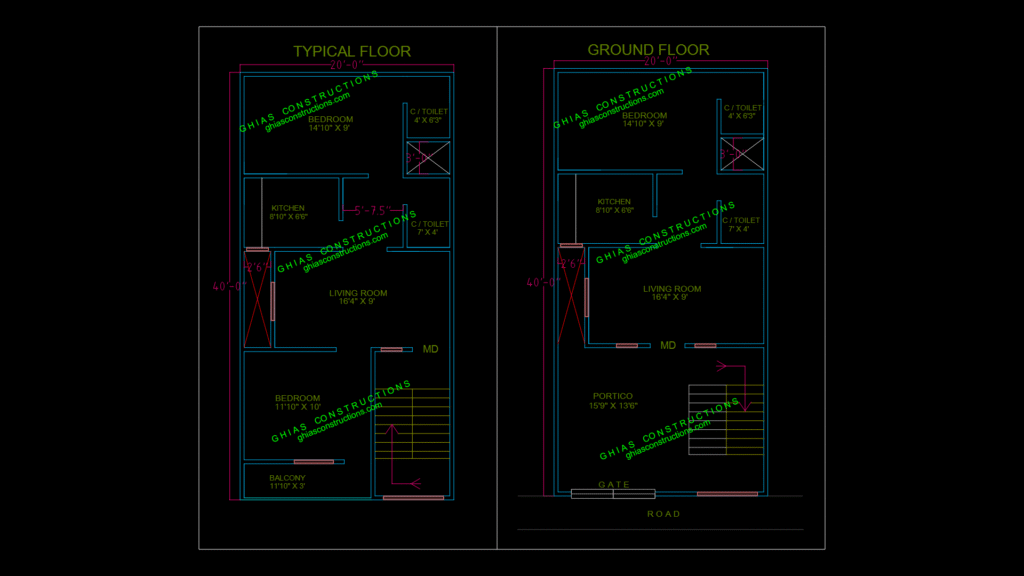

20′ x 40′ residential floor plan featuring a two-story layout with a ground floor portico and upper-level balcony. The ground floor includes a 15’9″ x 13’6″ portico, a 16’4″ x 9′ living room, kitchen, one bedroom, and two toilets. The typical floor plan reconfigures the space to accommodate two bedrooms (14’10” x 9′ and 11’10” x 10′), a kitchen, a living area, and an 11’10” x 3′ balcony.
The drawing provides detailed room dimensions in imperial units, showing 4.5-inch main walls and 2.5-inch internal partitions. Both levels are connected by an internal staircase. The 800-square-foot footprint per floor is designed for narrow lots, with road access and a front gate indicated on the ground level.
