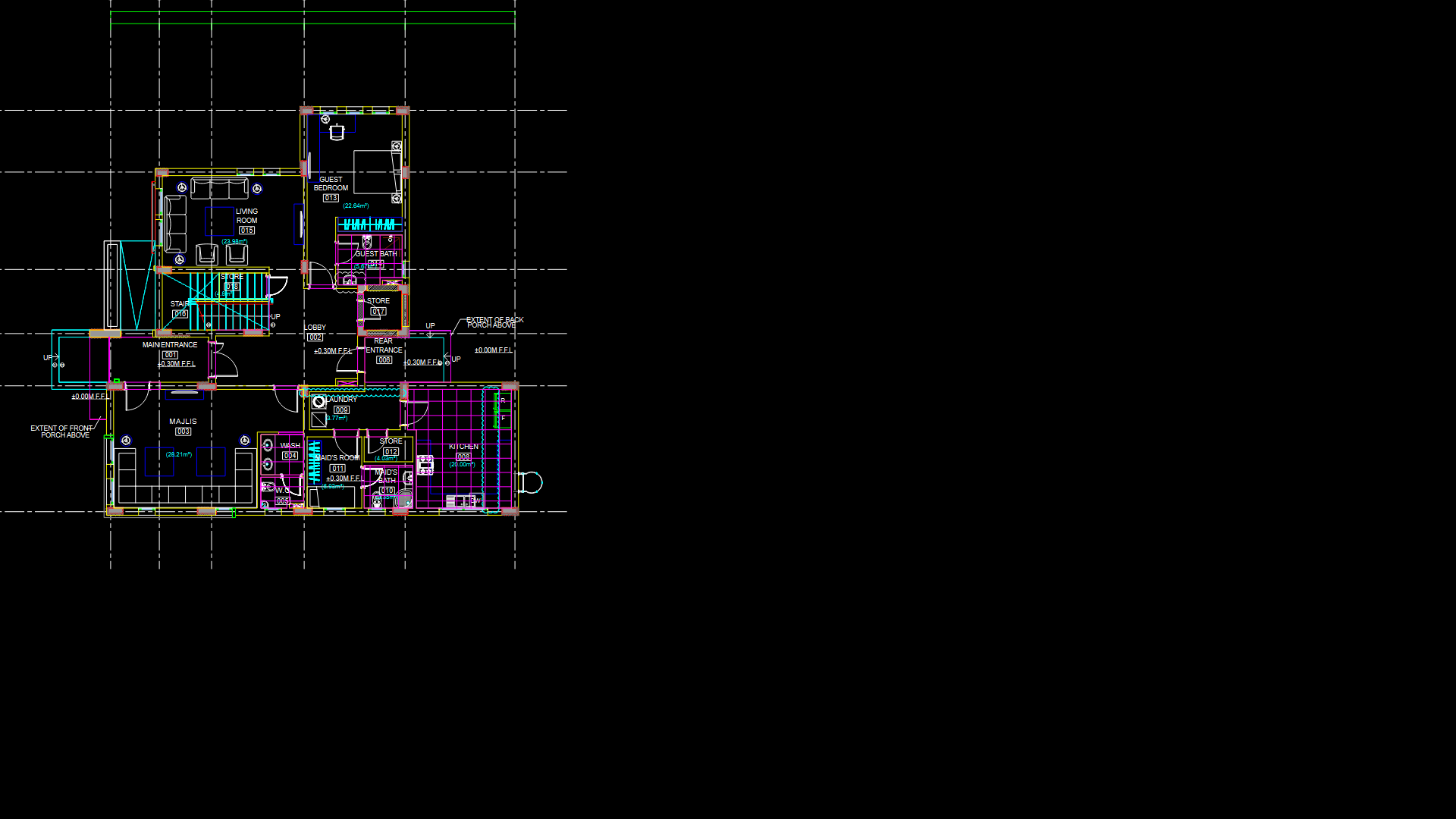

This reflected ceiling plan for the ground floor of a residential villa in Al Seyouh 16, Sharjah, UAE showcases the ceiling finishes and heights throughout the space. The plan delineates various rooms including a majlis (28.21m²), living room (23.98m²), kitchen (20.00m²), guest bedroom, maid’s quarters, and multiple storage areas. Ceiling finishes primarily consist of aluminum ceiling tiles (ACT) with a standard height of 3000mm in the main living spaces, while service areas utilize painted ceilings with a height of 3620mm. The drawing indicates ceiling material types using the notation system ‘I-CT-01’ for aluminum tiles and ‘I-PT-03/04’ for painted finishes. Floor level transitions are clearly marked (+0.30M F.F.L in main spaces, ±0.00M F.F.L at entrances), with an 8% slope at the main entrance for accessibility. The layout incorporates traditional Middle Eastern design elements including a formal majlis separate from the family living area, reflecting regional cultural considerations. MEP coordination notes indicate that light fixtures and diffusers must be centralized within ceiling grid patterns, with contractor shop drawings required prior to installation.
Residential Villa Reflected Ceiling Plan with ACT and Paint Finishes
