Retail Shop Floor Plan

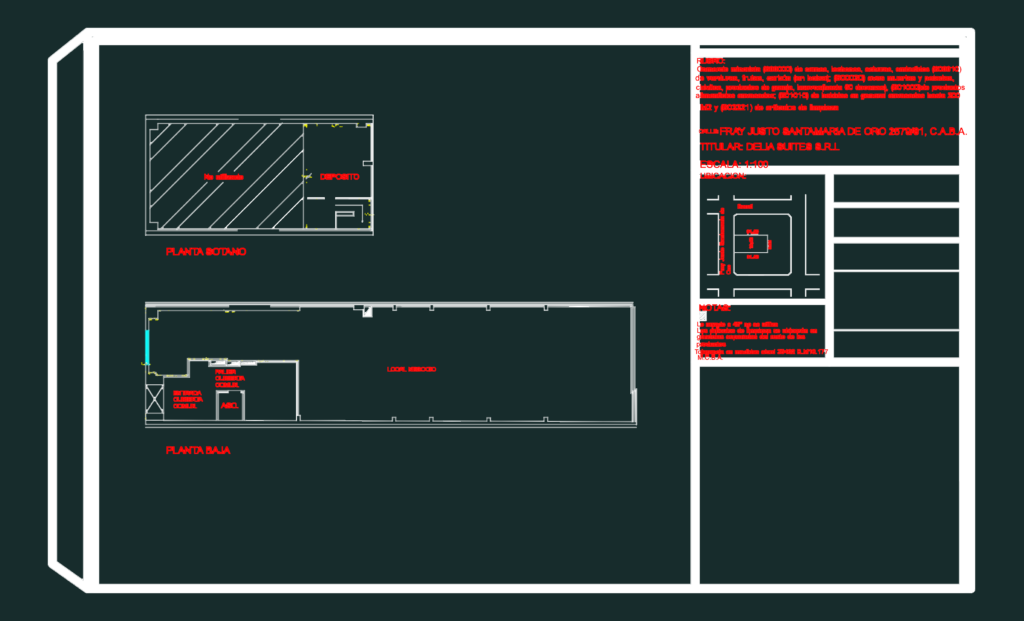

Floor plan showing the ground floor and basement of a retail shop with storage and business areas.

ground floor & basement layout for a retail shop incl. storage, entrance & locla business area

FREE

File Details

File Type
DWG
Type
Plan
Language
Spanish
Materials
Concrete, Masonry
Units
Metric
Area
150 – 249 m² (1614.6 – 2680.2 ft²)
Features
Elevator
Uploaded by
DWG Master
Downloads
1 downloads
Category
Commercial, Retail
Published
Sep 15, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

architectural drawing argentina basement plan CABA Commercial Building retail floor plan shop layout
