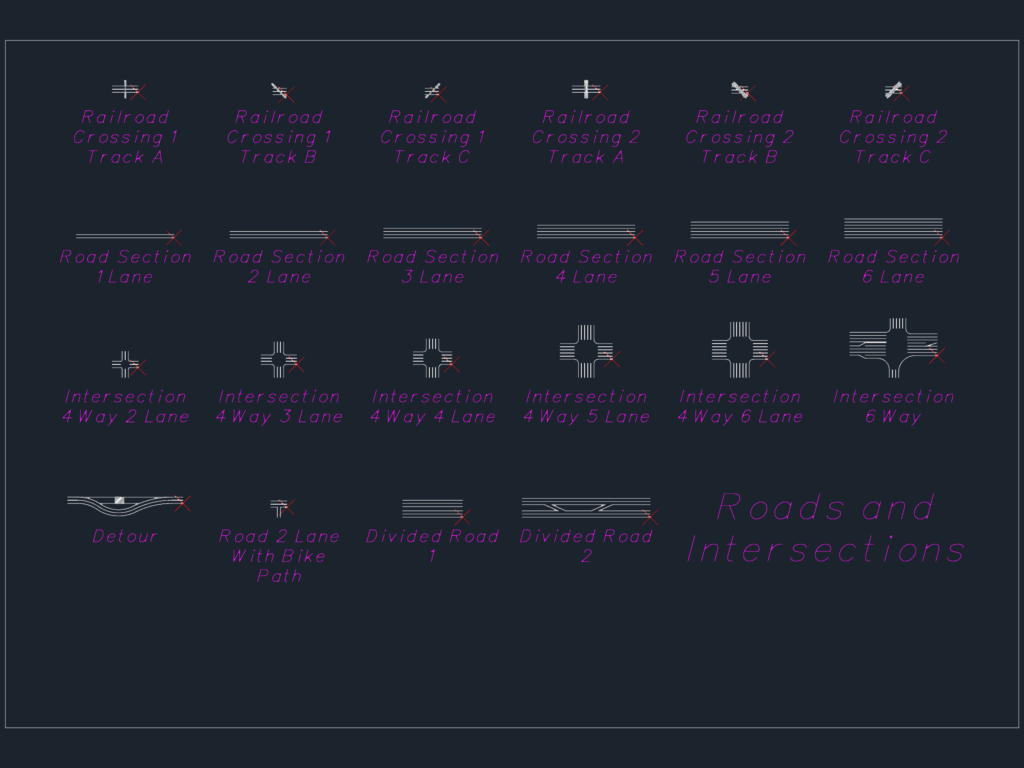

This drawing is for a set of road infrastructure templates, including road sections ranging from 1 to 6 lanes and various 4-way and 6-way intersection layouts. We’ve also included specific blocks for railroad crossings, divided roads, detours, and roads with bike paths. Everything is in 2D using imperial units. These could be useful in master planning and urban site development projects.
Road Section and Highway Intersection CAD Block Template
