Rotary Switch DWG Block for AutoCAD

Rotary Switch DWG Block for AutoCAD

Rotary switch for inversion of three-phase spinning

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

On right work: block on left work: lock on, Turn reversing switch

Raw text data extracted from CAD file:

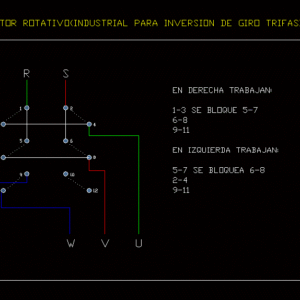

1 2 4 3 5 6 7 8 12 11 9 10 R S W V U T EN DERECHA TRABAJAN: 1-3 SE BLOQUE 5-7 6-8 9-11 EN IZQUIERDA TRABAJAN: 5-7 SE BLOQUEA 6-8 2-4 9-11 INTERRUPTOR ROTATIVO(INDUSTRIAL PARA INVERSION DE GIRO TRIFASICO)
