Building Section with Integrated Lighting System

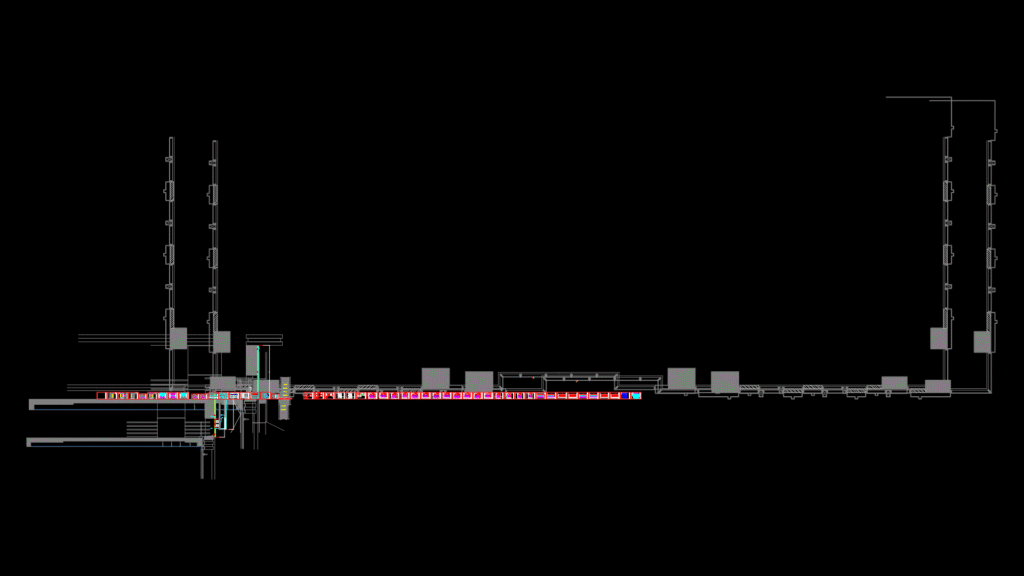

This technical section drawing depicts the vertical profile of the Sacombank headquarters building, spanning from basement level (-0.600) to roof level (+61.750). This drawing focuses primarily on the building’s exterior LED lighting installation scheme across its 15 floors plus mezzanine and roof levels.
Building Structure:
– Total height: 61.75 meters from ground level (±0.000)
– Floor-to-floor heights: Typically 3.6m with variations at specialized levels
– Three elevator shafts labeled as Elevator A, B, and C
Lighting System Components:
– Primary LED fixtures include models EXC-P33GP2, EXC-B90A, and EXC-W42B
– Power requirements: Various circuits ranging from 330W to 14.7kW
– On/off control cabinet with COS φ ≥ 0.85 power factor correction
– 61 power converters (12V) for LED operation
– Signal wiring using CAT6 cabling with 8-port and 24-port switches
Installation Details:
– Aluminum mounting profiles (35x50mm) with custom fabrications
– Stainless steel supports (40×40×1.5mm and 40×40×1.8mm) for cable trays
– Cable management system using 100×100mm and 300×100mm trays
– Self-drilling screws and M6/M8/M10/M12/M16/M20 HSA anchors
The building includes specialized areas such as outdoor and indoor café spaces, bar counter, VIP zones, and utility rooms. All connections require DOWSIL sealant for weatherproofing. The drawing serves as a principal guide with final adjustments permissible during installation.
