Blocks of accessories for sanitary installation

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

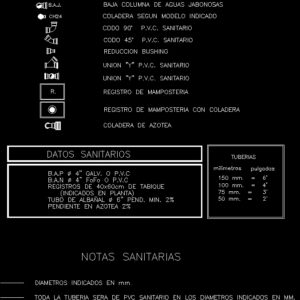

union p.v.c. sanitary, sewer pipe pend. min., masonry register, masonry log with strainer, all the piping will be of sanitary pvc in the diameters indicated in mm., roof strainer, all pipes will have a minimum slope of, the diameters of pipes are given in millimeters., health notes, will be connected to the existing drainage. possible pit, The entire sanitary installation will have a double ventilation system., the channeling for the eviction of rainwater, plans may vary according to the direction of the work., the trajectories of the pipes will be respected as far as possible according to the, diameters indicated in mm., health data, roof slope, Septum records, b.a.n fofo p.v.c, b.a.p. galv. p.v.c., mm., millimeters, inches, mm., pipelines, elbow p.v.c. sanitary, p.v.c. pipeline sanitary, union p.v.c. sanitary, elbow p.v.c. sanitary, Strainer according to model indicated, low column of soapy water, low column of rainwater, low column of sewage, bushing reduction, sanitary symbology, b.a.n., b.a.p., b.a.j., fan tube, line of albanal

Raw text data extracted from CAD file:

R. UNION "Y" P.V.C. SANITARIO TUBO DE ALBAÑAL d 6" PEND. MIN. 2% REGISTRO DE MAMPOSTERIA REGISTRO DE MAMPOSTERIA CON COLADERA TODA LA TUBERIA SERA DE PVC SANITARIO EN LOS DIAMETROS INDICADOS EN MM. COLADERA DE AZOTEA TODAS LAS TUBERIAS TENDRAN UNA PENDIENTE MINIMA DEL 2 %. LOS DIAMETROS DE TUBERIAS ESTAN DADOS EN MILIMETROS. NOTAS SANITARIAS SE CONECTARAN AL DRENAJE EXISTENTE. (O POSIBLE FOSA SEPTICA) TODA LA INSTALACION SANITARIA CONTARA CON UN SISTEMA DE DOBLE VENTILACION. LAS CANALIZACIONES PARA EL DESALOJO DE LAS AGUAS NEGRAS Y PLUVIALES PLANOS Y SE PODRAN VARIAR DE ACUERDO CON LA DIRECCION DE LA OBRA. LAS TRAYECTORIAS DE LAS TUBERIAS SE RESPETARAN EN LO POSIBLE SEGUN LOS R. DIAMETROS INDICADOS EN mm. DATOS SANITARIOS (INDICADOS EN PLANTA) PENDIENTE EN AZOTEA 2% REGISTROS DE 40x60cm DE TABIQUE B.A.N d 4" FoFo O P.V.C B.A.P d 4" GALV. O P.V.C 150 mm. = 6' 50 mm. = 2' 75 mm. = 3' milimetros pulgadas 100 mm. = 4' TUBERIAS CODO 45° P.V.C. SANITARIO TUBERIA DE P.V.C. SANITARIO UNION "Y" P.V.C. SANITARIO CODO 90° P.V.C. SANITARIO COLADERA SEGUN MODELO INDICADO BAJA COLUMNA DE AGUAS JABONOSAS BAJA COLUMNA DE AGUAS PLUVIALES BAJA COLUMNA DE AGUAS NEGRAS REDUCCION BUSHING SIMBOLOGIA SANITARIA B.A.N. B.A.P. B.A.J. CH24 TUBO VENTILADOR LINEA DE ALBANAL
