Section Rib Slab DWG Section for AutoCAD

Section Rib Slab DWG Section for AutoCAD

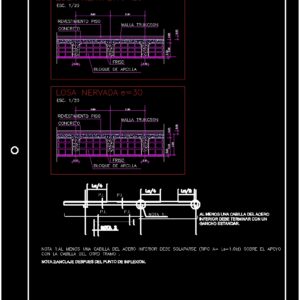

Detail rib slab for mezzanines – Sections

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

ribbed slabs:, esc, floor covering, concrete, trukcson mesh, frieze, clay block, ribbed slab, esc, floor covering, concrete, trukcson mesh, frieze, clay block, ribbed slab, note, note less a lower steel rod should overlap the support, with the leg of the other section, At least one lower steel rod should end with a standard hook., pi., note, note after the inflection point., pi.

Raw text data extracted from CAD file:

\A1;0.10 \A1;0.02 \A1;0.25 \A1;0.05 \A1;0.05 \A1;0.50 \A1;0.50 \A1;0.10 \A1;0.50 \A1;0.10 \A1;0.10 \A1;0.02 \A1;0.20 \A1;0.05 \A1;0.05 \A1;0.50 \A1;0.30 \A1;NOTA 2 \A1;Ln/4 \A1;Ln/5 \A1;Ln/4 LOSAS NERVADAS: ESC. 1/20 REVESTIMIENTO PISO CONCRETO 5 5 5 5 5 5 MALLA TRUKCSON 5 FRISO BLOQUE DE ARCILLA 5 LOSA NERVADA e=30 ESC. 1/20 REVESTIMIENTO PISO CONCRETO 5 5 5 5 5 5 MALLA TRUKCSON 5 FRISO BLOQUE DE ARCILLA 5 LOSA NERVADA e=25 5 NOTA 1: NOTA 1:AL MENOS UNA CABILLA DEL ACERO INFERIOR DEBE SOLAPARSE (TIPO A= Ls=1.0ld) SOBRE EL APOYO CON LA CABILLA DEL OTRO TRAMO . AL MENOS UNA CABILLA DEL ACERO INFERIOR DEBE TERMINAR CON UN GANCHO ESTANDAR. P.I. P.I. NOTA 2 NOTA 2:ANCLAJE DESPUES DEL PUNTO DE INFLEXION. P.I. P.I. Ln/4 Ln/5 Ln/4

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel, Other
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, cover, dach, DETAIL, DWG, hangar, lagerschuppen, mezzanines, rib, roof, section, sections, shed, slab, structure, terrasse, toit
