Settler Primary DWG Section for AutoCAD

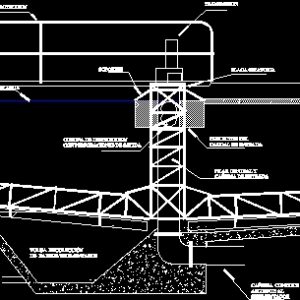

Section of settlerprimary with sweeping of surface and bottom

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

departure, zone, trajectory, Discrete sedimentation, Mudcoat, Of the particle, entry, zone, liquid, Discharge dump, Effluent pipe, Liquid height, Superficial sweeper, Maximum water level, Tank top edge, Surface sweeping brackets, Deflector, Inlet flow, Distribution crown, With outlet perforations, turntable, transmission, Supports, Guardrail, Access bridge, Collection channel, Floating foam, Collection camera, Of floating, Hopper pickup, Of sedimentary mud, Extraction pipe, Of mud, Extraction pipe, Of floating, Central pillar, Input pipe, Pipe leads, Affluent to, Settler

Raw text data extracted from CAD file:

\A1;D Salida Zona -2.068910218944822 de trayectoria Sedimentación Discreta Capa de Barro de la particula Entrada Zona de Vc Vp \A1;ALTURA LIQUIDO VERTEDERO DE SALIDA CAÑERIA EFLUENTE ALTURA LIQUIDO BARREDOR SUPERFICIAL NIVEL MÁXIMO DE AGUA BORDE SUPERIOR DE TANQUE SOPORTES DE BARREDOR DE SUPERFICIE DEFLECTOR DEL CAUDAL DE ENTRADA CORONA DE DISTRIBUCION CON PERFORACIONES DE SALIDA PLACA GIRATORIA TRANSMISIÓN SOPORTES BARANDA DE PROTECCION PUENTE DE ACCESO CANALETA RECOLECTORA DE ESPUMA Y FLOTANTES CAMARA COLECTORA DE FLOTANTES TOLVA RECOLECCIÓN DE BARROS SEDIMENTADOS CAÑERIA PARA EXTRACCION DE BARROS CAÑERIA EXTRACCIÓN DE FLOTANTES PILAR CENTRAL Y CAÑERIA DE ENTRADA CAÑERIA CONDUCE AFLUENTE AL SEDIMENTADOR
