Shower Af/Aq DWG Block for AutoCAD

Shower Af/Aq DWG Block for AutoCAD

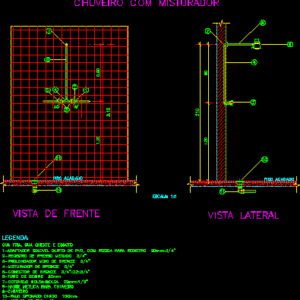

Shower installation with mixer

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

side view, front view, scale:, finished floor, finished floor, shower with mixer, hot water sewable weldable short of threaded for recording metallic medium pressure brass bronze brass copper bolsax metal handle for shower siphoning conical pvc

Raw text data extracted from CAD file:

\A1;0.90 \A1;1.20 \A1;2.10 VISTA LATERAL VISTA DE FRENTE 12 ESCALA: 1:1 11 6 PISO ACABADO 11 6 7 7 PISO ACABADO 10 2 9 8 3 1 2 4 5 AQ AF \A1;210 \A1;90 \A1;120 CHUVEIRO COM MISTURADOR \C4;LEGENDA \H0.04;\C3;ÁGUA FRIA, ÁGUA QUENTE E ESGOTO 1-ADAPTADOR SOLDÁVEL CURTO DE PVC, COM ROSCA PARA REGISTRO d 20mmx3/4" 2-REGISTRO DE PRESSÃO METÁLICO d 3/4" 3-PROLONGADOR MÉDIO DE BRONZE d 3/4" 4-MISTURADOR DE BRONZE d 3/4" 5-CONECTOR DE BRONZE d 3/4"x22x3/4" 6-TUBO DE COBRE d 22mm 7-COTOVELO BOLSAxBOLSA d 22mmx1/2" 8-HASTE METÁLICA PARA CHUVEIRO 9-CHUVEIRO 10-RALO SIFONADO CÔNICO d 100mm 11-JOELHO 90° PVC d 40mm 0.90 1.20 2.10

Language	Portuguese
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, DWG, einrichtungen, facilities, gas, gesundheit, installation, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, mixer, provision, shower, wasser bestimmung, water
