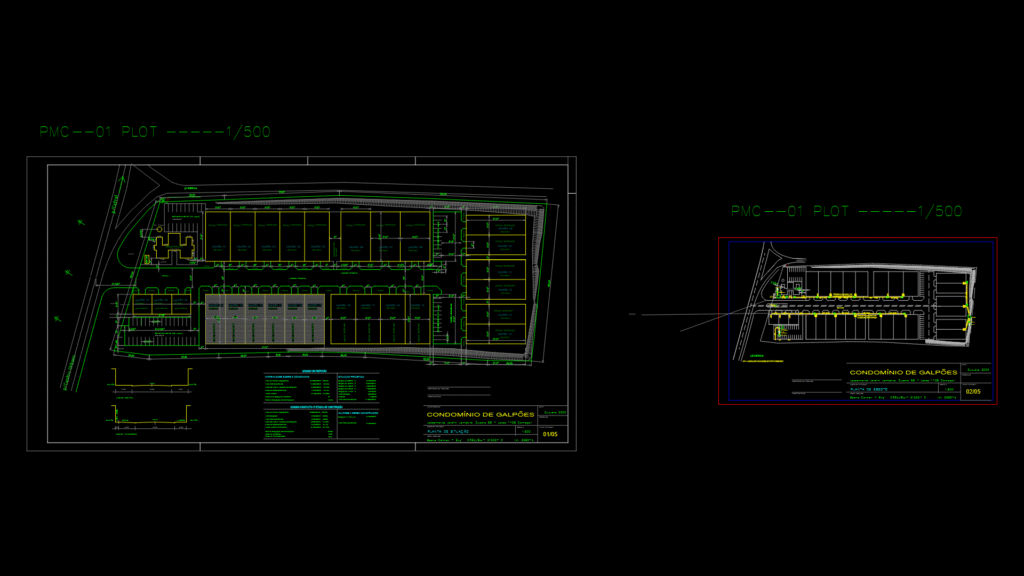

Site Plan for Industrial Warehouse Complex with Sanitary System

Comprehensive site plan for a condominium-style industrial warehouse complex in Loteamento Jardim Jambeiro, Camaçari, Brazil. The project features 27 warehouses ranging from 144m² to 540m² with a central circulation road system and dedicated parking areas.

Key Components:
– 27 warehouse units arranged in 2 primary rows
– Administration building and portaria (gatehouse)
– Sanitary wastewater system with septic tanks, anaerobic filters, and sumidouros
– Parking areas totaling 63 vehicle spaces (18, 12, and 33 spaces in separate lots)
– Green space/landscaping areas along property boundaries
– 100mm and 150mm diameter sewer pipes with 2% slopes

The drawing includes topographic information with elevation points ranging from approximately 98.4m to 108.6m above sea level. Site infrastructure incorporates stormwater management with appropriate grading (1-4% slopes) and access roads connecting to the main thoroughfare (Estrada Para Monte Gordo). Scale 1:500.
