Sport Center DWG Section for AutoCAD

Sport Center DWG Section for AutoCAD

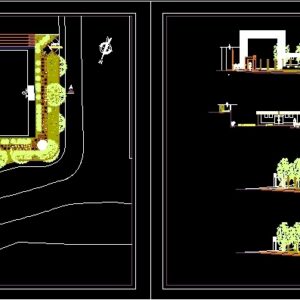

Sport Center – Plants – Sections – Elevations

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

sports crockery, fronton crockery, square, fountain, ss.hh. males, ss.hh. checkers, north elevation, cut a – a, west elevation, bleachers, court b – b

Raw text data extracted from CAD file:

N N.P.T=-0.25 LOZA DEPORTIVA LOZA DE FRONTON N.P.T=+2.80 N.P.T=+-0.0 INGRESO 1 N.P.T=-0.45 N.P.T=-0.25 LOZA DE FRONTON 1 N.P.T=-+0.00 LOZA DE FRONTON 2 N.P.T=-+0.00 A PLAZOLETA N.P.T=-0.25 FUENTE N.P.T=-0.25 2 1 1 2 N.P.T=+0.20 SS.HH. VARONES SS.HH. DAMAS ELEVACION NORTE CORTE A - A N.P.T=+-0.00 N.P.T=-0.25 N.P.T=-0.70 B N.P.T=-+0.00 N.P.T=-0.25 A ELEVACION OESTE GRADERIAS LOZA DEPORTIVA B INGRESO 2 1 2 N.P.T=+0.20 CORTE B - B N.P.T=-1.50 N.P.T=+-0.00 N.P.T=+-0.00 LOZA DEPORTIVA N.P.T=-0.25

Language	Spanish
Drawing Type	Section
Category	Entertainment, Leisure & Sports
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, basquetball, center, court, DWG, elevations, feld, field, football, golf, plants, section, sections, sport, sports center, voleyball
