Stacked cooling and heating coil connections

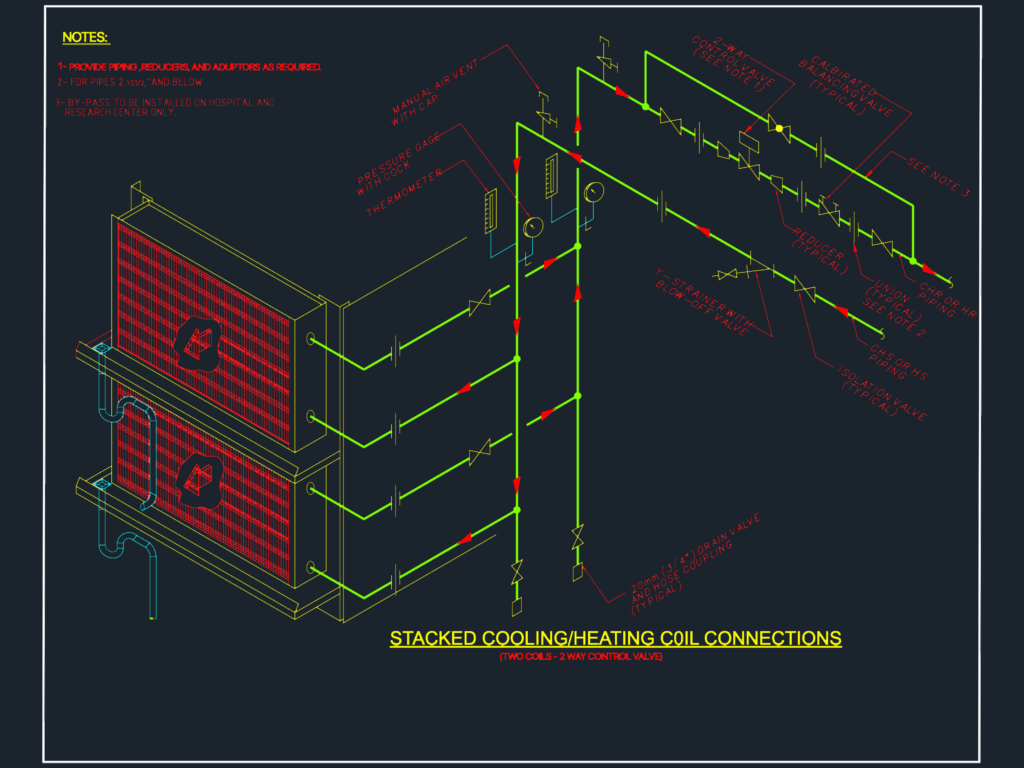

Schematic of stacked cooling and heating coil connections with 2-way control valve and piping instrumentation.

stacked cooling/heating coil connections for two coils. includes the 2-way control valve, gauges, strainers, and typical piping layout.

FREE

File Details

File Type
DWG
Type
Detail
Language
English
Materials
Steel, Other
Units
Metric
Uploaded by
Eng_Plans
Downloads
2 downloads
Category
Engineering & Technical, Mechanical, Electrical & Plumbing (MEP)
Published
Jul 10, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

2-way valve chiller piping coil connections cooling coil heating coil hvac mechanical detail piping detail plumbing
