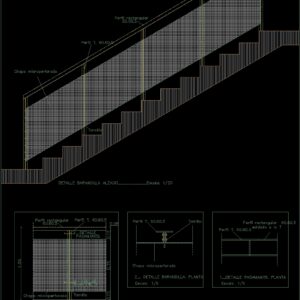

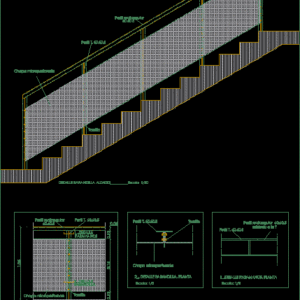

Detail of railing for lineal stairway

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

railing detail, detail railing. plant, profile t., microperforated sheet, profile t., Rectangular profile, screw, railing. plant, scale:, Rectangular profile, profile t., microperforated sheet, screw, detail railing. raised, scale:, railing, railing, Rectangular profile, profile t., screw, microperforated sheet, soldier

Raw text data extracted from CAD file:

0.12 0.75 1.05 0.12 0,06 DETALLE BARANDILLA ALZADO__________Escala: 1/20 2_. DETALLE BARANDILLA. PLANTA Perfil T. 60.60.5 Chapa microperforada Perfil T. 60.60.5 Perfil rectangular 60.60.5 Tornillo 1_.DETALLE PASAMANOS. PLANTA Escala: 1/5 Escala: 1/5 Perfil rectangular 60.60.5 Perfil T. 60.60.5 Chapa microperforada Tornillo 2_.DETALLE 1_.DETALLE DETALLE BARANDILLA. ALZADO Escala: 1/20 0.12 0.75 1.05 0.12 5 PASAMANOS BARANDILLA Perfil rectangular 60.60.5 Perfil T. 60.60.5 Tornillo Chapa microperforada soldado a la T
