Stairs DWG Detail for AutoCAD

Stairs DWG Detail for AutoCAD

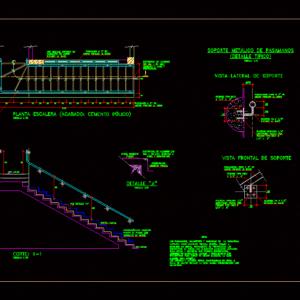

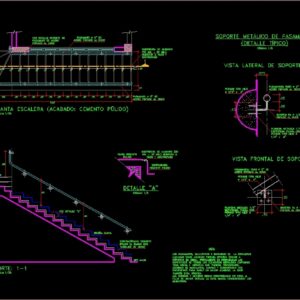

DETAIL OF CEMENT POLISHED STRAIGHT LADDER

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Cement staircase plant, scale:, Aluminum corner piece mm. Alignment, Duck painted steel railing, Hilti type bolts, Handrail: steel tube painted with duco, Hook: faith painted duco, Built-in metal plate fixed with hilti bolts, Duck painted steel railing, See detail bracket of steel railing painted duco, Side view of support, Front view of support, Handrail handrail support, scale:, Handrail: steel tube painted with duco, Hilti type bolts, Built-in metal plate fixed with hilti bolts, Hook: faith painted duco, Note the balusters railings of the stairs will take as finished epoxy paint defined in previously prepared the surfaces of all the metal elements cleaning any grease impurity that could also be sanded worn out the encounters to give it a better base will also be epoxy. The height measurements will be checked on site. Lack of detail the quota orders considering the millimeters., Counterpart: polished cement, Step: polished cement, Aluminum corner piece mm. Alignment, detail, scale:, cut:, scale:, Npt, Contrazocalo: polished lead cement with tarrajeo, Bruna, see detail

Raw text data extracted from CAD file:

.075 .06 .05 .10 .10 .90 1.20 .30 .60 .30 .30 .30 .30 .30 .30 .30 .30 .30 .30 .30 .30 .30 5.55 .15 .60 .15 .60 .90 .90 .90 .10 .15 .60 1 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 PLANTA ESCALERA (ACABADO: CEMENTO PÚLIDO) ESCALA: 1/25 CANTONERA DE ALUMINIO (35 MM. x 20 MM.) ALINEADA A PASO Y CONTRAPASO PASAMANO Ø 2" DE ACERO PINTADO AL DUCO .075 5 5 5 5 5 PERNOS TIPO HILTI Ø 1/4" x 4" PASAMANOS: TUBO Ø 2" DE ACERO PINTADO AL DUCO GANCHO: Fe Ø 1/2" PINTADO AL DUCO PLANCHA METALICA 1/4" EMPOTRADA FIJADA CON PERNOS TIPO HILTI Ø 1/4" x 4" PASAMANO d 2" DE ACERO PINTADO AL DUCO VER DETALLE SOPORTE DE PASAMANO DE ACERO PINTADO AL DUCO VER DETALLE SOPORTE DE PASAMANO DE ACERO PINTADO AL DUCO VISTA LATERAL DE SOPORTE VISTA FRONTAL DE SOPORTE SOPORTE MET\LÁ\LLICO DE PASAMANOSDE PASAMANOS \W7.03440; \L(DETALLE T\LÍ\LPICO) ESCALA: 1/5 PASAMANOS: TUBO Ø 2" DE ACERO PINTADO AL DUCO PERNOS TIPO HILTI Ø 1/4" x 4" PLANCHA METALICA 1/4" EMPOTRADA FIJADA CON PERNOS TIPO HILTI Ø 1/4" x 4" GANCHO: Fe Ø 1/2" PINTADO AL DUCO \W7.53175; NOTA \W8.17460; LOS PASAMANOS, BALAUSTRES Y BARANDAS DE LA ESCALERAS LLEVARAN COMO ACABADO PINTURA EPOXÍCA (COLOR A DEFINIRSE EN OBRA). PREVIAMENTE SE PREPARARAN LAS SUPERFICIES DE TODOS LOS ELEMENTOS METALICOS LIMPIANDO TODA GRASA E IMPUREZA QUE PUDIERA PRESENTARSE, ASIMISMO SE MASILLARAN, LIJARAN Y DESGASTARAN LOS ENCUENTROS PARA DARLE UN MEJOR ACABADO, LA BASE TAMBIÉN SERA EPOXÍCA. LAS MEDIDAS Y ALTURAS SERAN COMPROBADAS EN OBRA. A FALTA DE MAYOR DETALLE LA COTA MANDA CONSIDERANDO LOS MILIMETROS. \W1.40476; CONTRAPASO: \W1.40476; CEMENTO PULIDO PASO: CEMENTO PULIDO CANTONERA DE ALUMINIO (35 MM. x 20 MM.) ALINEADA A PASO Y CONTRAPASO DETALLE "A""A" ESCALA: 1/5 5 CORTE: 1-1 ESCALA: 1/25 \W0.19524; 1 \W0.19524; 1 NPT +2.99 NPT ±0.00 CONTRAZÓCALO: CEMENTO PULIDO (A PLOMO CON TARRAJEO DE MURO) BRUÑA: 0.01M. VER DETALLE "A" 5 5 5

Language	Spanish
Drawing Type	Detail
Category	Stairways
Additional Screenshots
File Type	dwg
Materials	Aluminum, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, cement, degrau, DETAIL, DWG, échelle, escada, escalier, étape, ladder, leiter, polished, staircase, stairs, stairway, step, straight, stufen, treppe, treppen
