Stairway DWG Detail for AutoCAD

Stairway DWG Detail for AutoCAD

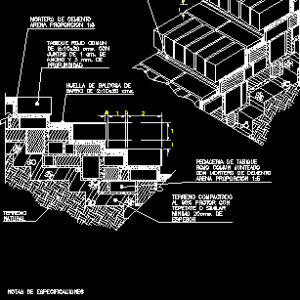

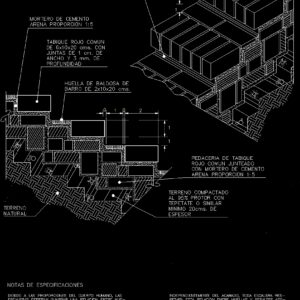

Details of armed concrete stair – Technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

tile tread of, clay of cms., common red wall, of cms. with, joints of cm. from, width mm. from, depth, cement mortar, sand proportion, partition wall, common red, with cement mortar, sand proportion, compacted ground, to the protor with, similar tepetate, Minimum of, thickness, ground, natural, flattened mortar, cement sand in, finished finish, natural textured, spec notes, due to the body’s proportions, stairs should keep a relationship between, the following limits:, independently of the whole ladder, petara this relationship between footprints peraltes, thus creating the correct, his journey rested while avoiding, for fixing rails, lles., dangerous stumbling blocks., fingerprints, being the protrusions, mule:

Raw text data extracted from CAD file:

1 1 0 1 1 1 0 2 \A1;2 \A1;0 \A1;1 \A1;1 \A1;1 \A1;0 \A1;1 \A1;1 5 5 5 5 5 5 HUELLA DE BALDOSA DE BARRO DE 2x10x20 cms. TABIQUE ROJO COMUN DE 6x10x20 cms. CON JUNTAS DE 1 cm. DE ANCHO Y 3 mm. DE PROFUNDIDAD MORTERO DE CEMENTO ARENA PROPORCION 1:5 PEDACERIA DE TABIQUE ROJO COMUN JUNTEADO CON MORTERO DE CEMENTO ARENA PROPORCION 1:5 TERRENO COMPACTADO AL 95% PROTOR CON TEPETATE O SIMILAR MINIMO 20cms. DE ESPESOR TERRENO NATURAL APLANADO DE MORTERO DE CEMENTO ARENA EN PROPORCION 1:5 ACABADO TEXTURIZADO NATURAL 5 5 NOTAS DE ESPECIFICACIONES DEBIDO A LAS PROPORCIONES DEL CUERPO HUMANO, LAS ESCALERAS DEBERAN GUARDAR UNA RELACION ENTRE HUE- LLAS Y PERALTES QUE SE AJUSTEN A LA SIGUIENTE FOR- INDEPENDIENTEMENTE DEL ACABADO, TODA ESCALERA RES- PETARA ESTA RELACION ENTRE HUELLAS Y PERALTES ASE- GURANDO CON ESTO EL CORRECTO FUNCIONAMIENTO, HA- CIENDO DESCANSADO SU RECORRIDO Y EVITANDO TAMBIEN PARA FIJACION DE BARANDALES Y PASAMANOS,VER DETA- LLES CORRESPONDIENTES. TROPIEZOS PELIGROSOS. 2P + H = ±64 Y "H" LAS HUELLAS SIENDO "P" LOS PERALTES MULA:

Language	Spanish
Drawing Type	Detail
Category	Stairways
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	armed, autocad, concrete, degrau, DETAIL, details, DWG, échelle, escada, escalier, étape, ladder, leiter, specifications, stair, staircase, stairway, step, stufen, technical, treppe, treppen
