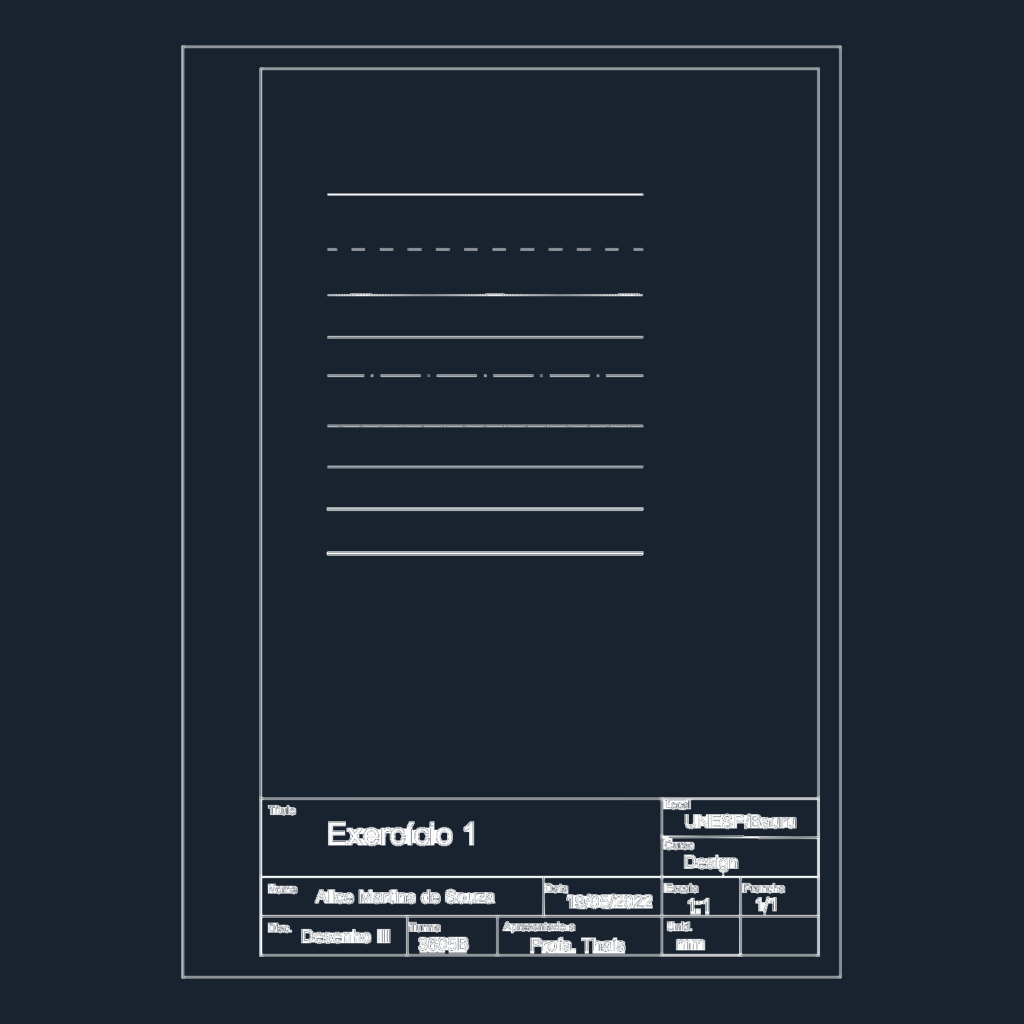

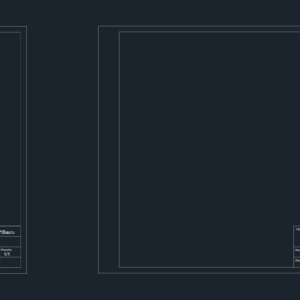

just the templates for A4 and A3 technical layouts, incl. fields for scale, date, the usual title block info. i built these for UNESP design coursework but they’re standard enough for any technical drafting in mm. The A4 is portrait and the A3 is landscape, with the block measuring 175mm wide typ. throughout the set. Line types like dashed and phantom are already drawn in for reference. Border offsets are there for margins, usually 7mm or 10mm, depends on your print settings.Gabarito para desenho técnico nos formatos A4 e A3 com carimbo (legenda) seguindo normas ABNT/ISO. Inclui tipos de linha e margens configuradas.
Standard ISO A4 and A3 Technical Drawing Templates
