Standard Lineweight CAD Reference Table and Block

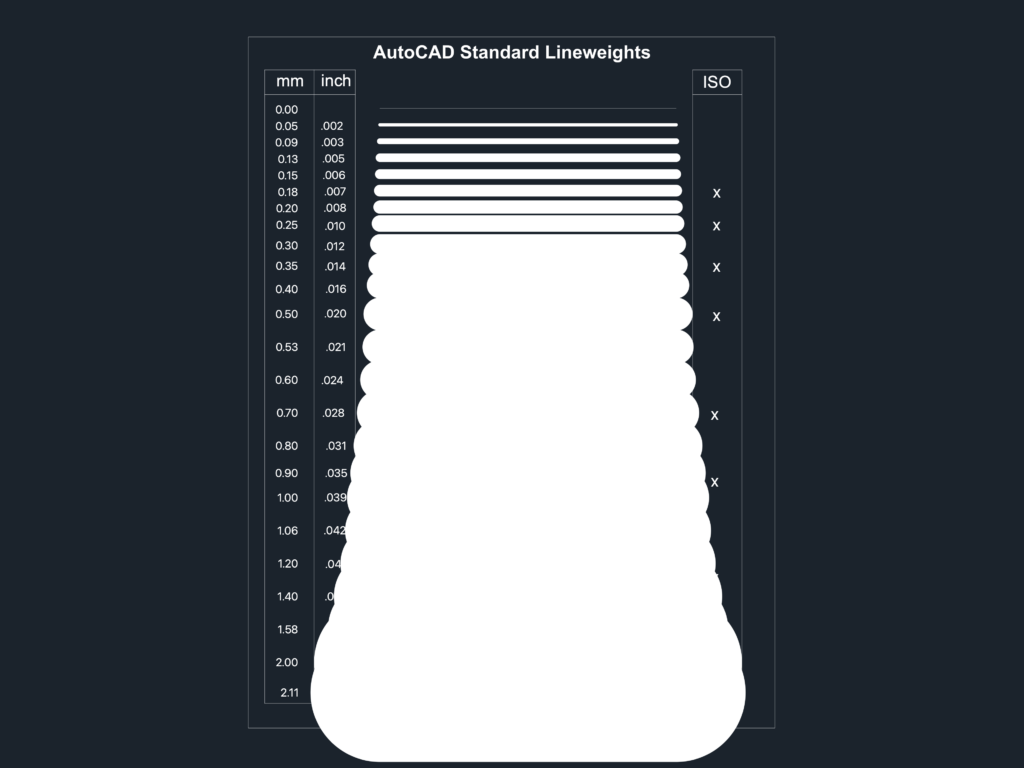

Lineweight reference table showing standard thicknesses in mm and inches. Includes a list of all standard sizes from 0.00 mm up to 2.11 mm with their ISO designations where applicable. I included visual lines for each weight so you can see exactly how they look in model space. This is a handy block for keeping drafting standards consistent across different projcts or within a team. You can drop it into a template or just keep it as a side reference when setting up plot styles. It’s meant to be a simple, quick lookup guide for anyone drafting. Includes the text values and the actual visual polyline representations for every standard increment
