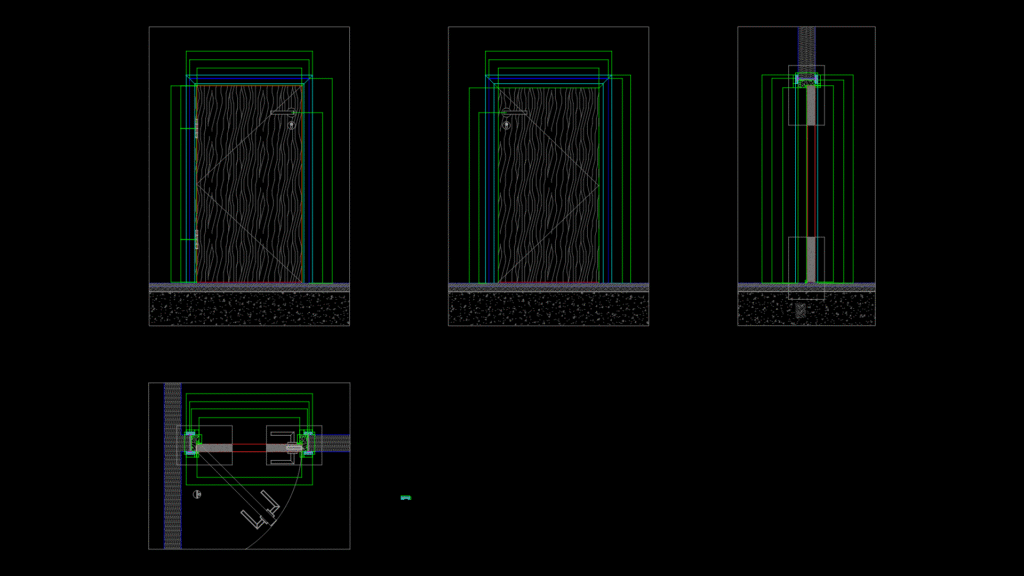

This CAD drawing shows comprehensive store room door specifications for end villas in a 4Plex townhouse development. The drawing includes elevations, sections, and plan views with detailed door assembly components. The wooden door features architraves, frames, and ironmongery with specific dimensions for installation. Door height is approximately 2100mm with a width of 900mm, using standard hardware including hinges and latch mechanisms. Floor levels are marked at multiple heights (0.00+, 4.50+, 7.50+, 10.00+, 10.50+), indicating a multi-story structure. The door assembly includes seals and packers to ensure proper installation and functionality. Construction details show the relationship between the door frame, wall construction, and flooring transitions; particularly noteworthy is the integration of the frame with surrounding wall elements, which enhances stability while maintaining aesthetic consistency with the overall villa design.
Store Room Door Detail for 4Plex Villa: Section and Elevation
