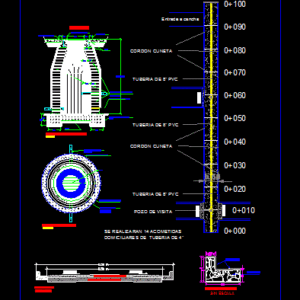

Technical CAD drawing for a 100-meter hydraulic concrete street segment. It features a site plan with stationing from 0+000 to 0+100, including 8-inch PVC sewage piping and 4-inch domestic connections. The manhole (pozo de visita) is detailed through both a plan view and a vertical cross-section, showing stone masonry construction, trapezoidal brick lining, and a concrete cover.
The drawing also contains a typical street cross-section with a 5.50m roadway width and 3% lateral slopes. Detail views specify the curb and gutter (cordón cuneta) construction using stone masonry and polished plaster. Structural materials noted include gravel bedding, hydraulic concrete, and select material fill. Plano de conjunto pozo de visita y sección de calle.
