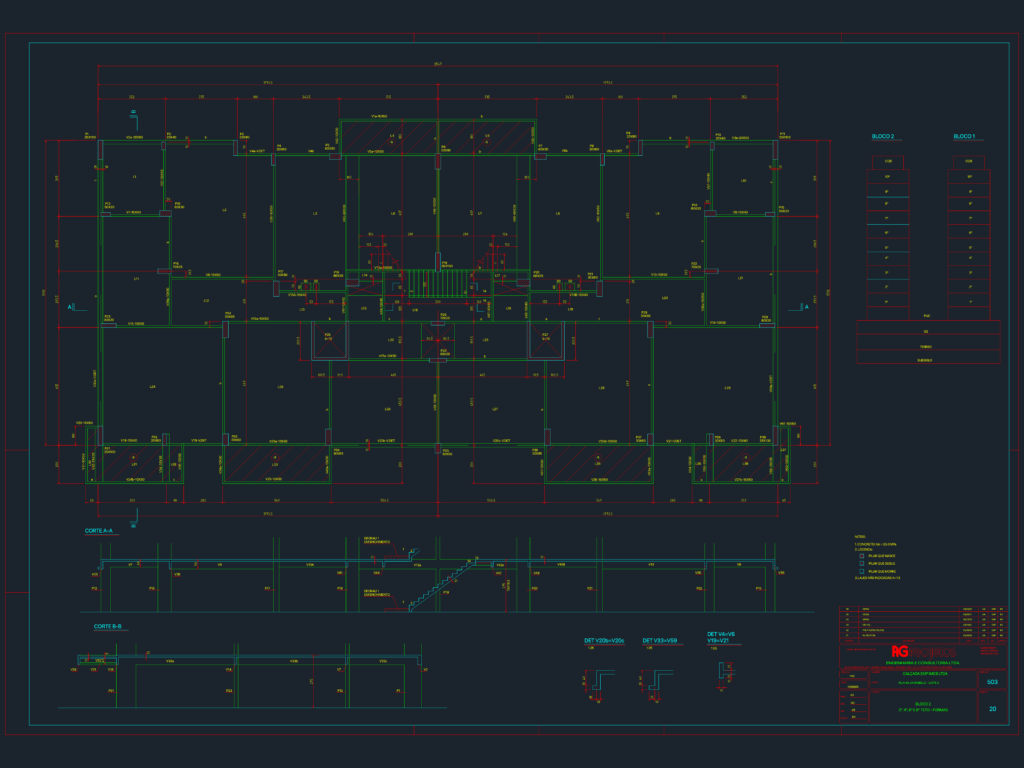

Shuttering and formwork layout for multiple floors (2nd, 4th, 6th, and 8th) of a mid-rise residential block. It includes a detailed plan view of the slabs, beams, and columns with full dimensioning. We’ve included two primary cross-sections, A-A and B-B, cutting through the main building axis and the stairwell area. Technical notes specify 25 MPa concrete and a standard slab height of 13 cm. You can also find specific beam connection details and a column status legend indicating which pillars start, continue, or end at this level.Planta de formas para o 2u00ba, 4u00ba, 6u00ba e 8u00ba teto de edifu00edcio residencial. Inclui cortes, detalhes de vigas e legenda de pilares.
Structural Formwork Plan for Residential Multi-Story Building
