Structural Frame DWG Section for AutoCAD

Structural Frame DWG Section for AutoCAD

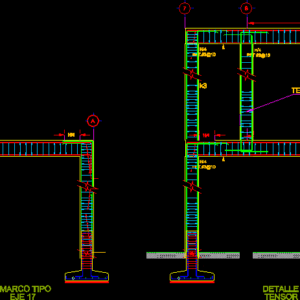

Two transversal sections of frame structural type and armed with 2 different brackets

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

axis, frame type, castle tensor, anchor detail, tensor

Raw text data extracted from CAD file:

535 \A1;H/4 \A1;H/4 EJE 17 MARCO TIPO eje-? eje-? eje-? \A1;H/4 \A1;H/4 TENSOR - CASTILLO DETALLE DE ANCLAJE \A1;H/4 EST.#3@10 eje-? \A1;H/4 EST.#3@10 eje-? eje-? eje-? \A1;H/4 EST.#3@10 TENSOR TS-1 535 k3 k4

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	armed, autocad, brackets, construction details section, cut construction details, DWG, frame, section, sections, structural, transversal, type
