Students Centre DWG Block for AutoCAD

Students Centre DWG Block for AutoCAD

Kota is a hub for students who go there for making their careers… but the living conditions their are not appropriate… thats the age when they need mental comfort.. they need special care.. so here i have designed a centre for them.. where they could study and live a comforatble and happy life

Drawing labels, details, and other text information extracted from the CAD file:

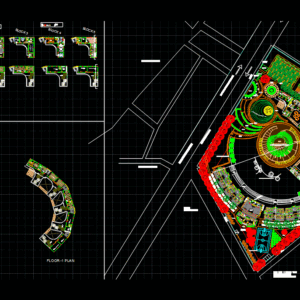

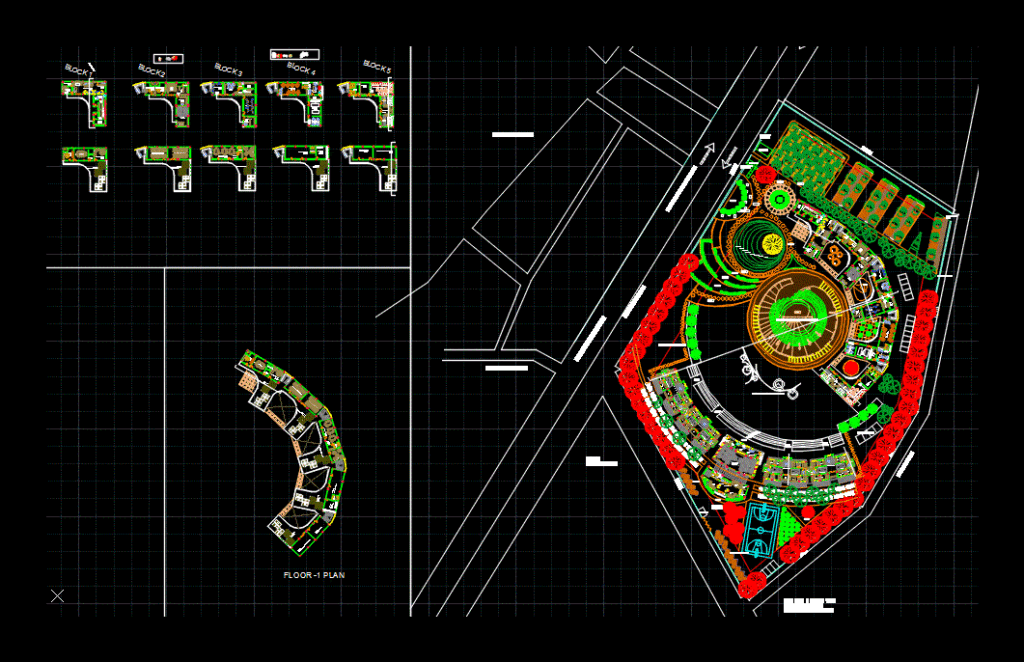

entry, way to waterfront, duct, bath, rostrum for congregation, shower, slope, reception, first floor plan, rac ground, way to riverside, residential area, saras milk factory, light and sound show, way to rostrum, deck, security, pedestrian entrance, vehicular entrance, vehicular exit, service entry, lvl, washing area, service door, staff entry, her, his, staff parking, staff quarters, waiting area, registeration, visitor’s parking, waiting area, terrace for counselling, artwork terrace, terrace for yoga, terrace for dance, sectional elevation, roof lvl, lamination board, deodar wood shutter, panneled, skirting, floor finish, wood shutter, wooden frame, glazed tiles, marble cover, plinth lvl, g.l., first flr, terrace, mumty, parapet

Raw text data extracted from CAD file:

\A1;2.00 \A1;2.00 \A1;1.60 15 sq.m 15 sq.m 17sq.m 17sq.m 15 sq.m 15 sq.m 17sq.m CARETAKER 11sq.m ENTRY 1.5 M WIDE CORRIDOR 1.5 M WIDE CORRIDOR 1.5 M WIDE CORRIDOR 1.5 M WIDE CORRIDOR WAY TO WATERFRONT LVL +0.45m ENTRY 1 M WIDE CORRIDOR 1M WIDE CORRIDOR WAY TO WATERFRONT LVL +0.45m 15 sq.m 17sq.m 17sq.m CARETAKER 11sq.m 15 sq.m 15 sq.m 17sq.m 17sq.m 15 sq.m DUCT 1 M WIDE CORRIDOR 1M WIDE CORRIDOR BATH BATH BATH BATH BATH BATH BATH BATH -1186.064528010819 -1186.064528010819 -1186.064528010819 \A1;2.00 \A1;2.00 \A1;1.60 15 sq.m 15 sq.m 17sq.m 17sq.m 15 sq.m 15 sq.m 17sq.m CARETAKER 11sq.m ENTRY 1 M WIDE CORRIDOR 1M WIDE CORRIDOR 1 M WIDE CORRIDOR 1 M WIDE CORRIDOR WAY TO WATERFRONT LVL +0.45m ENTRY 1 M WIDE CORRIDOR 1M WIDE CORRIDOR WAY TO WATERFRONT LVL +0.45m 15 sq.m 17sq.m 17sq.m CARETAKER 11sq.m 15 sq.m 15 sq.m 17sq.m 17sq.m 15 sq.m DUCT 1 M WIDE CORRIDOR 1M WIDE CORRIDOR BATH BATH BATH BATH BATH BATH BATH BATH -1185.479966595033 -1185.479966595033 -1185.479966595033 ROSTRUM FOR CONGREGATION LVL- 3.15 LVL+0.15m 5 WAITING AREA 40 sq.m LIBRARY 80 sq.m BOOK STORE 30 sq.m E-LIBRARY 40 sq.m 6 sq.m COUNSELLOR'S ROOM 40 sq.m COUNSELLOR'S ROOM 40 sq.m PHOTO GALLERY 40 sq.m EXHIBITION 80 sq.m HANDICRAFT SHOP 40 sq.m POTTERY 60 sq.m RECORDS 25 sq.m STORE 25sq.m STORE 10 sq.m 10sq.m CAFETERIA 100 sq.m KITCHEN 45 sq.m BILLIARDS 60 sq.m STORE 20 sq.m TT ROOM 40 sq.m SHOWER SHOWER SHOWER BT SLOPE SLOPE SLOPE SHOWER 1.75X1.20 SHOWER BT SLOPE GYMNASIUM 90 sq.m AEROBICS 40 sq.m SAUNA 3.54 x 2.81m SAUNA 3.54 x 2.81m RECEPTION 40 sq.m 40 sq.m 40 sq.m 40 sq.m \A1;15.76 MEN 27 sq.m WOMEN 27 sq.m REGISTERATION 40 sq.m MAINTENANCE 14 sq.m RECORDS 22 sq.m STORE 22 sq.m PANTRY 20sq.m ACCOUNTS 10 sq.m \A1;82.6 \A1;147.9 \A1;178.5 \A1;115.6 \A1;113.9 \A1;63.0 0 M WIDE ROAD FIRST FLOOR PLAN RAC GROUND 0 M WIDE ROAD 30 M WIDE ROAD -846.2486587682972 -846.2486587682972 -846.2486587682972 -846.2486587682972 -846.2486587682972 -846.2486587682972 WAY TO RIVERSIDE RESIDENTIAL AREA SARAS MILK FACTORY LIGHT AND SOUND SHOW NATIONAL HIGHWAY-33 NATIONAL HIGHWAY-33 WAY TO ROSTRUM DECK DECK DECK DECK SECURITY SECURITY PEDESTRIAN ENTRANCE VEHICULAR ENTRANCE VEHICULAR EXIT SERVICE ENTRY LVL - 0.3m LVL +0.3m LVL+ 0.45m LVL +0.75m LVL +1.05m LVL-0.6M LVL + 0.45 LVL +0.15 LVL +0.15 LVL LVL LVL LVL LVL 0.0m LVL UTENSIL STORE 22 sq.m GRAINERY STORE 15sq.m KITCHEN 36sq.m WASHING AREA RAW STORE 14sq.m SERVICE DOOR STAFF ENTRY HER HIS ACCOUNTS 15 sq.m RECORDS 8sq.m MESS 250 sq.m CAPACITY -180 LVL + 0.45M LVL + 0.45M SECURITY PEDESTRIAN ENTRANCE LVL + 0.15M LVL + 0.15M LVL + 0.15M LVL + 0.15M LVL -0.0M LVL -0.3M LVL -0.45M LVL -0.6M LVL -0.75M LVL + 0.15M LVL + 0.15M LVL + 0.15M LVL + 0.15M STAFF PARKING LVL +0.15 LVL +0.15 LVL +1.2m LVL +1.6m LVL +1.8m LVL +2m LVL +0.15 LVL +0.15 LVL - 0.3m LVL 0.15m STAFF QUARTERS SITE AREA - 30,850 Sq.m 3.8 hectares approx. WATER BODY 4800 sq.m WAITING AREA WAITING AREA REGISTERATION RECEPTION WAITING AREA VISITOR'S PARKING \A1;3.6000 \A1;0.4500 \A1;3.6000 \A1;0.4500 \A1;3.5000 \A1;3.6000 \A1;3.5000 \A1;0.4502 \A1;0.4502 \A1;3.5998 \A1;3.6000 \A1;3.6000 \A1;0.9000 \A1;0.4502 \A1;3.5998 \A1;3.6000 \A1;1.5958 \A1;0.4502 \A1;3.5998 \A1;3.5998 \A1;3.5998 \A1;2.5002 \A1;0.4502 \A1;3.5998 \A1;3.5998 \A1;3.5998 \A1;2.5002 \A1;16.5464 \A1;16.5464 \A1;3.6000 \A1;6.5419 \A1;0.9000 \A1;1.4500 \A1;0.4500 \A1;1.2000 \A1;3.5998 \A1;3.6000 \A1;3.6000 \A1;0.9042 \A1;3.6000 \A1;0.9042 \A1;2.6119 \A1;6.2759 MEN 27 sq.m WOMEN 27 sq.m WAITING AREA REGISTERATION 40 sq.m MAINTENANCE 14 sq.m WAITING AREA 40 sq.m LIBRARY 80 sq.m BOOK STORE 30 sq.m BLOCK 1 BLOCK 2 E-LIBRARY 40 sq.m PHOTO GALLERY 40 sq.m EXHIBITION 80 sq.m HANDICRAFT SHOP 40 sq.m POTTERY 60 sq.m RECORDS 25 sq.m STORE 25sq.m BLOCK 3 BLOCK 4 BLOCK 5 STORE 10 sq.m CAFETERIA 100 sq.m KITCHEN 45 sq.m BILLIARDS 60 sq.m STORE 20 sq.m TT ROOM 40 sq.m RECORDS 22 sq.m STORE 22 sq.m SHOWER SHOWER SHOWER BT SLOPE SLOPE SLOPE SHOWER 1.75X1.20 SHOWER BT SLOPE GYMNASIUM 90 sq.m AEROBICS 40 sq.m SAUNA 3.54 x 2.81m SAUNA 3.54 x 2.81m RECEPTION SEMINAR HALL 90 sq.m TERRACE FOR COUNSELLING PAINTING ROOM 80 sq.m ARTWORK TERRACE MEDITATION AND YOGA HALL 90 sq.m THERAPY ROOM 80 sq.m TERRACE FOR YOGA CRAFT ROOM 50 sq.m DANCE CLASSES 100 sq.m TERRACE FOR DANCE COSTUME ROOM 45 sq.m STAFF CONFERENCE 60 sq.m STAFF LOUNGE 50 sq.m DIRECTOR'S ROOM 40 sq.m 10sq.m 10sq.m 10 sq.m 40 sq.m 40 sq.m 40 sq.m 40 sq.m 6 sq.m COUNSELLOR'S ROOM 40 sq.m COUNSELLOR'S ROOM 40 sq.m PANTRY 20sq.m ACCOUNTS 10 sq.m STORE 10 sq.m SEMINAR HALL 90 sq.m STORE 10 sq.m TERRACE FOR COUNSELLING MEDITATION AND YOGA HALL 90 sq.m THERAPY ROOM 80 sq.m TERRACE FOR YOGA DANCE CLASSES 100 sq.m TERRACE FOR DANCE COSTUME ROOM 45 sq.m 10 sq.m PAINTING ROOM 80 sq.m ARTWORK TERRACE CRAFT ROOM 50 sq.m 10sq.m STORE 10 sq.m SEMINAR HALL 90 sq.m TERRACE FOR COUNSELLING SEMINAR HALL 90 sq.m STAFF CONFERENCE 60 sq.m STAFF LOUNGE 50 sq.m DIRECTOR'S ROOM 40 sq.m STORE 10 sq.m TERRACE FOR COUNSELLING FLOOR -1 PLAN SECTIONAL ELEVATION SECTIONAL ELEVATION ROOF LVL 8.8M LVL +2.6M LVL -0.45M LVL -.0.9M LVL -1.35M LVL -1.8M LVL -2.25M LVL -2.70M LVL-3.15M 5 5 ROSTRUM FOR CONGREGATION LVL- 3.15 LVL+0.15m 5 ROSTRUM FOR CONGREGATION LVL- 3.15 LVL+0.15m 5 MEN 27 sq.m WOMEN 27 sq.m REGISTERATION 40 sq.m MAINTENANCE 14 sq.m RECORDS 22 sq.m STORE 22 sq.m PANTRY 20sq.m ACCOUNTS 10 sq.m MEN 27 sq.m WOMEN 27 sq.m REGISTERATION 40 sq.m MAINTENANCE 14 sq.m RECORDS 22 sq.m STORE 22 sq.m PANTRY 20sq.m ACCOUNTS 10 sq.m STAFF CONFERENCE 60 sq.m STAFF LOUNGE 50 sq.m DIRECTOR'S ROOM 40 sq.m STORE 10 sq.m TERRACE FOR COUNSELLING SHOWER SHOWER SHOWER BT SLOPE SLOPE SLOPE SHOWER 1.75X1.20 SHOWER BT SLOPE \W6.95179; YOGA ROOM \W7.08581; GYMNASIUM \W9.57777; SCHEDULE \W7.70265; PLINTH LVL 0.45M \W9.17132; G.L. 0.0M \W7.85423; FLOOR 1 LEVEL 4.05M 5 5 \W6.90282; ROOF LEVEL 4.05M 5 \W7.70265; PLINTH LVL 0.45M \W9.17132; G.L. 0.0M \W7.85423; FLOOR 1 LEVEL 4.05M 5 5 \W6.90282; ROOF LEVEL 4.05M 5 \W7.70265; PLINTH LVL 0.45M \W9.17132; G.L. 0.0M \W8.34354; FIRST FLR 4.05M \W6.67774; SECOND FLR 7.65M 11.25M \W8.72499; TERRACE \W8.81691; PARAPET \W7.50250; MUMTY 12.15M 13.75M \farial|b0|i0|c0|p34;\C256;BATH \farial|b0|i0|c0|p34;\C256;BATH \farial|b0|i0|c0|p34;\C256;BATH \farial|b0|i0|c0|p34;\C256;BATH \farial|b0|i0|c0|p34;\C256;BATH \farial|b0|i0|c0|p34;\C256;BATH \W7.70265; PLINTH LVL 0.45M \W9.17132; G.L. 0.0M \W8.34354; FIRST FLR 4.05M \W6.67774; SECOND FLR 7.65M 11.25M \W8.72499; TERRACE 11.25M \W8.81691; PARAPET LAMINATION BOARD DEODAR WOOD SHUTTER PANNELED SKIRTING FLOOR FINISH LAMINATION BOARD WOOD SHUTTER WOODEN FRAME GLAZED TILES MARBLE COVER \W7.70265; PLINTH LVL 0.45M \W9.17132; G.L. 0.0M \W6.90282; ROOF LEVEL 4.05M \W9.51259; MESS ROOF LEVEL 5.25M PLINTH LVL 0.45M G.L. 0.0M FIRST FLR 4.05M 7.30M TERRACE MUMTY 9.84M 5 8.35M PARAPET 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 \W7.70265; PLINTH LVL 0.45M \W9.17132; G.L. 0.0M \W8.34354; FIRST FLR 4.05M \W6.67774; SECOND FLR 7.65M 11.25M \W8.72499; TERRACE \W8.81691; PARAPET \W7.50250; MUMTY 12.15M 13.75M 5 5 5 5 5 5 \W8.08239; LIGHT WELL \W8.08239; LIGHT WELL \W7.70265; PLINTH LVL 0.45M \W9.17132; G.L. 0.0M 5 5 \W9.47928; FLOOR 1 \W9.32293; FLOOR 2 \W8.72499; TERRACE 11.25M \W8.81691; PARAPET 12.00M 5 5 5 \W7.70265; PLINTH LVL 0.45M \W9.17132; G.L. 0.0M 5 5 \W9.47928; FLOOR 1 4.05M \W9.32293; FLOOR 2 7.65M \W8.72499; TERRACE 11.25M \W8.81691; PARAPET 12.00M 5 5 5

Language	English
Drawing Type	Block
Category	Hospital & Health Centres
Additional Screenshots
File Type	dwg
Materials	Wood, Other
Measurement Units	Metric
Footprint Area
Building Features	Garden / Park, Deck / Patio, Parking
Tags	abrigo, autocad, block, centre, comfort, conditions, DWG, geriatric, hub, living, making, residence, shelter, students
