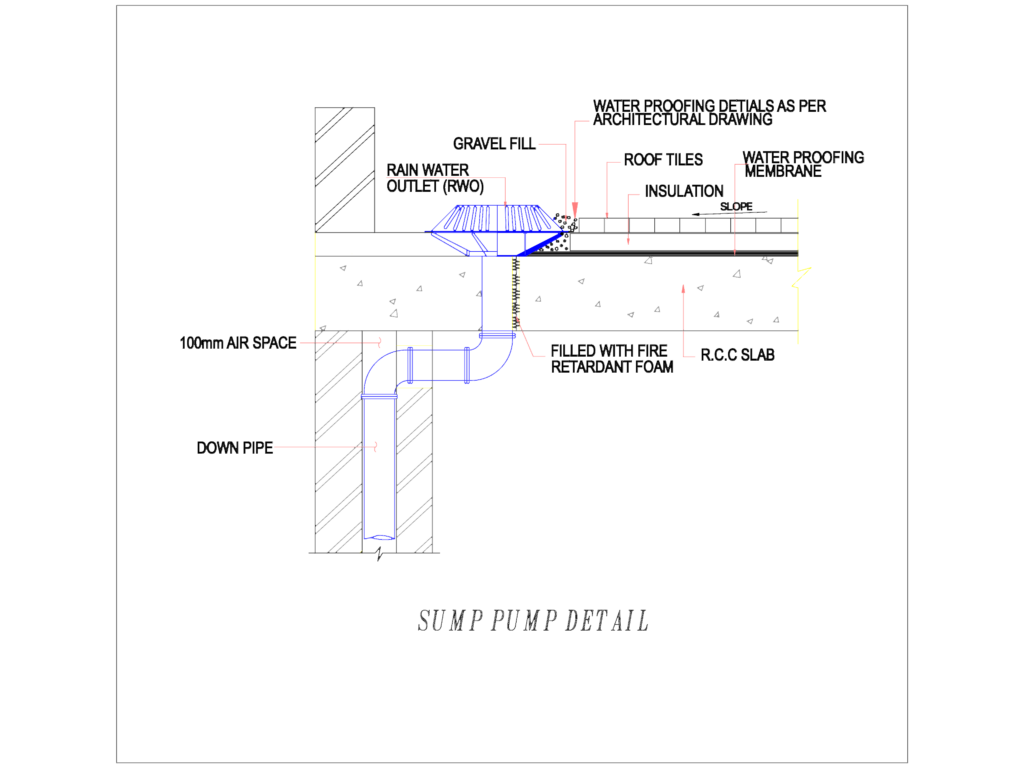

Sump pump and rain water outlet (RWO) section detail for heavy-duty roof drainage. Detail specifies R.C.C. slab integration with waterproofing membrane, insulation, and roof tiles. Includes 100mm air space at down pipe filled with fire retardant foam, plus gravel fill around the RWO for filtration.
Sump Pump Section CAD Detail with RWO Assembly
