Systems To Lower Debris DWG Block for AutoCAD

Systems to lower debris by ducts HDPE(elephant trunks)

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

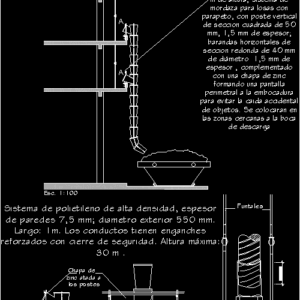

variable, Theme: collective protection. System to lower debris., detail, Struts, variable, Esc., Polyethylene system of high thickness of outside diameter mm. Long: ducts have reinforced clips with safety lock. maximum height:, Guardrail guard for jig system for slabs with vertical post of square section of mm of horizontal railings of round section of mm of diameter mm of thickness complemented with a zinc sheet forming a perimeter screen the mouthpiece to prevent the accidental fall of objects. The discharge mouth will be placed in the vicinity, detail of, Shielding, Sheet metal, Zinc bound, anchorage, The posts

Raw text data extracted from CAD file:

\A1; VARIABLE Tema: Protección colectiva. Sistema para bajar escombros. A A DETALLE A / 0 8 Puntales VARIABLE Esc. 1:100 Sistema de polietileno de alta densidad, espesor de paredes 7,5 mm; diametro exterior 550 mm. Largo: 1m. Los conductos tienen enganches reforzados con cierre de seguridad. Altura máxima: 30 m . Baranda de proteccion de 1 m de altura, sistema de mordaza para losas con parapeto, con poste vertical de seccion cuadrada de 50 mm, 1,5 mm de espesor; barandas horizontales de seccion redonda de 40 mm de diámetro 1,5 mm de espesor , complementado con una chapa de zinc formando una pantalla perimetral a la embocadura para evitar la caida accidental de objetos. Se colocaran en las zonas cercanas a la boca de descarga DETALLE DE APANTALLAMIENTO Chapa de zinc atada a DE ANCLAJE los postes
