Template Section DWG Section for AutoCAD

Template Section DWG Section for AutoCAD

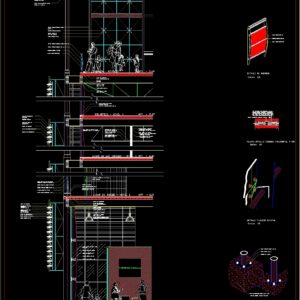

Infantile museum – Steel structure with curtain wall – 4 Levels

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

content, Title workshop, scale, December, Claudio aste alarcon, Student titling, sheet, Escantillon cut, School of architecture, Children’s media museum, Anchor bolts, Stuffed with, Mortar more expansive, Diameter mm. Mm., Steel profile, Pv armco instapanel, Cooperative plate, Double steel beam, Circular tubular pillar steel, Retraction mesh, Steel plate mm., Diameter mm. Mm., Circular tubular pillar steel, Perforated steel plate mm., Steel plate mm., Tubular steel profile mm., Fixing bolts, Npt, Place of games level, Npt, Place of sounds level, Npt, Place of exposition level, concrete, Diameter mm. Mm., Circular tubular pillar steel, Diametro sup. Mm., Cone steel reduction pillar, Diameter inf. Mm., Welding cord, Mm., Steel plate anchored slab, Steel plate mm., Tubular steel mm., Anchor system glass, Tempered glass mm., Compacted ground, Compacted rubble cap cm., Radier, Support profile, Aluzinc mm., Angle of rotation max., Aluminum wing, Drive bar, Steel profile mm., Steel wire mm., enclosure, Polyurethane filler, expanded, Block of glass cm., Silicone union, Fixing bolts, Steel plate mm., Tubular pillar steel cm., Foundation pit, Mooring beam h.g., scale, Foundation detail, Tubular steel mm., Perforated steel plate, Steel plate mm., scale, Foundation detail, scale, Railing detail, Fixing plate steel mm., Weldable mm., Structural steel plate, Npt, Library level, Npt, Terrace level, Support profile, Aluzinc mm., Angle of rotation max., Resistant aluminum wing, Drive bar, enclosure, Polyurethane filler, expanded, Wire tensioners, Galvanized gauge, Suspension profile, Javelin, Fashiontone plate, Molded mineral fiber, Mm., scale, Plant detail volcometal partition, Wool rock insulated with kraft paper, Vertical volumetal profile, Vertical amount each cms., Projecc. Volcometal metal profile, On both sides density, Two plates of volcanite mm., Volcanite mm., Two volcanite plates, Vertical cm. Every cm., Projecc. Metal profile, upright, Wool insulated rock., With kraft paper on both sides, density, Perforated steel plate, Steel plate mm., Tubular steel profile mm., Circular tubular profile steel mm., Circular tubular steel profile, Mm., Steel profile, Pv armco instapanel, Cooperative plate, Double steel beam, Steel plate mm., concrete, Solid steel tubular, With union profile, Fixed luxalon panel, Aluzinc mm., Steel plate mm., Circular tubular pillar steel, Mm. Mm., Steel plate mm., Polycarbonate sheet mm., tempered glass, Cm., Steel wire mm., Crystal anchor system, Rectangular tubular steel profile, Mm., Double steel beam, Mm., scale, Crystal fixing detail, scale, Detail pillar, Science technology, Circular tubular steel mm., Double steel beam mm., Steel reduction cone, Steel plate mm., Circular tubular pillar steel mm.

Raw text data extracted from CAD file:

\A1;140 \A1;120 \A1;60 \A1;R20 \A1;6 \A1;12 \A1;3 \A1;3 CONTENIDO TALLER DE TITULO ESCALA : DICIEMBRE 21-2001 CLAUDIO ASTE ALARCON ALUMNO TITULANDO : N°LAMINA 1:20 14 DE 18 LAMINA CORTE ESCANTILLON ESCUELA DE ARQUITECTURA MUSEO MEDIATICO INFANTIL DE Fe 10 O 12 O 15/8 " 2 + 2 PERNOS ANCLAJE O 1" RELLENOS CON MORTERO MAS EXPANSIVO 2 O 22 DIAMETRO = 400 mm. e= 25 mm. PERFIL C ACERO 250 x 150 x 15 PV 6 ARMCO INSTAPANEL PLACA COLABORANTE VIGA DOBLE T ACERO 125 x 400 x 15 PILAR TUBULAR CIRCULAR ACERO MALLA DE RETRACCION PLACA ACERO e=50 mm. PLACA L ACERO e=50 mm. DIAMETRO = 350 mm. e= 21.875 mm. PILAR TUBULAR CIRCULAR ACERO PLACA ACERO PERFORADO e=10 mm. PLETINA ACERO e= 15 mm. PERFIL TUBULAR ACERO O =35 mm. PERFIL TUBULAR ACERO O =65 mm. 4 PERNOS DE FIJACION 1 X 3" NPT + 6.15 LUGAR DE JUEGOS - NIVEL 2 NPT + 10.30 LUGAR DE LOS SONIDOS - NIVEL 3 NPT + 0.00 LUGAR DE EXPOSICIONES - NIVEL 1 HORMIGON DIAMETRO = 300 mm. e= 18.75 mm. PILAR TUBULAR CIRCULAR ACERO DIAMETRO SUP. = 300 mm. CONO ACERO REDUCCION PILAR DIAMETRO INF. = 350 mm. CORDON SOLDADURA e= 30 mm. PLACA ACERO ANCLADA A LOSA PLETINA ACERO e=18 mm. TUBULAR ACERO O 60 mm. SISTEMA ANCLAJE VIDRIO CRISTAL TEMPLADO e= 12 mm. TERRENO COMPACTADO CAPA RIPIO APISONADO h=20 cm. RADIER PERFIL DE SOPORTE ALUZINC e=0.4 mm. ANGULO DE GIRO MAX. ALA DE ALUMINIO BARRA DE ACCIONAMIENTO PERFIL ACERO 15 X 45 mm. CABLE ACERO O 10 mm. CERRAMIENTO RELLENO POLIURETANO EXPANDIDO BLOQUE DE VIDRIO 19 X 19 X 8 cm. UNION SILICONA 24511.89520025719 24511.89520025719 PERNOS DE FIJACION PLACA ACERO e=50 mm. PILAR TUBULAR ACERO O 40 CM. POYO DE FUNDACION H.G.120 X 140 X 140 VIGA DE AMARRE H.G. 60 X 60 X 60 Escala 1:25 DETALLE DE FUNDACION TUBULAR ACERO O 35 mm. PLACA ACERO PERFORADO PLACA ACERO e=30 mm. Escala 1:20 DETALLE DE FUNDACION Escala 1:10 DETALLE DE BARANDA 24511.89520025719 24511.89520025719 PLACA DE SUJECION ACERO e=18 mm. SOLDABLE e=30 mm. PLACA ACERO ESTRUCTURAL NPT + 15.45 BIBLIOTECA - NIVEL 4 NPT + 21.60 TERRAZA - NIVEL 5 PERFIL DE SOPORTE ALUZINC e=0.4 mm. ANGULO DE GIRO MAX. ALA DE ALUMINIO RESISTENTE BARRA DE ACCIONAMIENTO CERRAMIENTO RELLENO POLIURETANO EXPANDIDO TENSORES DE ALAMBRE GALVANIZADO CALIBRE 12 PERFIL DE SUSPENCION JAVELIN 15/16" PLACA FASHIONTONE FIBRA MINERAL MOLDEADA 610 x 1220 x 13 mm. 24511.89520025719 24511.89520025719 24511.89520025719 Escala 1:5 PLANTA DETALLE TABIQUE VOLCOMETAL F-120 24511.89520025719 LANA ROCA DE AISLAN CON PAPEL KRAFT PERFIL VOLCOMETAL MONTANTE VERTICAL 60x40. MONTANTE VERTICAL 60x40. CADA 60 CMS. PROYECC. PERFIL METALICO VOLCOMETAL POR AMBAS CARAS DENSIDAD 40 KG./MT.3 DOS PLANCHAS DE VOLCANITA e= 15 mm. VOLCANITA e= 15 mm. DOS PLANCHAS DE VOLCANITA VERTICAL 60 X 40 cm. CADA 60 cm. PROYECC. PERFIL METALICO VOLCOMETAL, MONTANTE LANA ROCA DE AISLAN. CON PAPEL KRAFT POR AMBAS CARAS DENSIDAD 40 KG./MT.3 PLACA ACERO PERFORADO PLETINA ACERO e= 15 mm. PERFIL TUBULAR ACERO O =45 mm. PERFIL TUBULAR CIRCULAR ACERO O =85 mm. PERFIL TUBULAR CIRCULAR ACERO O 150 mm. PERFIL C ACERO 250 x 150 x 8 PV 6 ARMCO INSTAPANEL PLACA COLABORANTE VIGA DOBLE T ACERO 125 x 400 x 8 PLACA ACERO e=50 mm. HORMIGON TUBULAR ACERO SOLIDO CON UNION A PERFIL PANEL 84R LUXALON FIJO ALUZINC e= 0.4 mm. PLACA L ACERO e=50 mm. PILAR TUBULAR CIRCULAR ACERO O 200 mm. e= 12.5 mm. PLACA L ACERO e=50 mm. PLANCHA POLICARBONATO e=10 mm. CRISTAL TEMPLADO 70 X 70 X 0.12 cm. CABLE ACERO O 20 mm. SISTEMA ANCLAJE CRISTAL PERFIL TUBULAR RECTANGULAR ACERO 220 X 430 x 15 mm. VIGA DOBLE T ACERO 125 x 400 x 15 mm. Escala 1:5 DETALLE FIJACION CRISTAL Escala 1:10 DETALLE UNION PILAR CIENCIA Y TECNOLOGIA TUBULAR CIRCULAR ACERO O 400 mm. VIGA DOBLE T ACERO 125 X 400 X 15 mm. CONO REDUCCION ACERO PLACA ACERO L e= 50 mm. PILAR TUBULAR CIRCULAR ACERO O 350 mm. 14

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Glass, Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, construction details section, curtain, cut construction details, DWG, infantile, levels, museum, section, steel, structure, template, wall
