Thermal Insulations – Construction Details DWG Detail for AutoCAD

Rock wool-based insulating boards – 3 details with technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

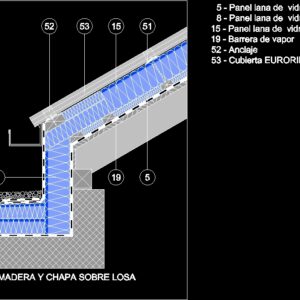

Support wood deck on concrete slab, Glass wool flumroc panel, Ecco premium, Support wood veneer over concrete slab, Panel glass wool flumroc ecco panel glass wool flumroc premium panel glass wool flumroc eurotherm vapor barrier anchor cover eurorib, Specifications.zip contains the product line of flumroc a.g.for insulation, With its technical specifications in .ht format

Raw text data extracted from CAD file:

8 8 APOYO CUBIERTA DE MADERA SOBRE LOSA DE HORMIGON 8 – Panel lana de vidrio Flumroc PRIMA 8 5 8 8 – Flumroc-Dämmplatte PRIMA 5 – Flumroc-Dämmplatte ECCO 16 52 53 15 51 8 19 5 APOYO CUBIERTA MADERA Y CHAPA SOBRE LOSA HORMIGON 5 – Panel lana de vidrio Flumroc ECCO 8 – Panel lana de vidrio Flumroc PRIMA 15 – Panel lana de vidrio Flumroc EUROTHERM 19 – Barrera de vapor 52 – Anclaje 53 – Cubierta EURORIB 400 ESPECIFICACIONES.ZIP CONTIENE LA LINEA DE PRODUCTOS DE FLUMROC A.G.PARA AISLACIONES CON SUS ESPECIFICACIONES TECNICAS EN FORMATO .HTM
