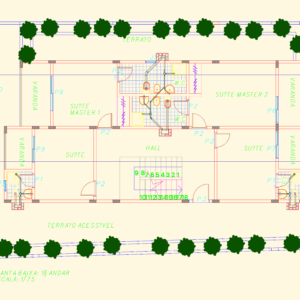

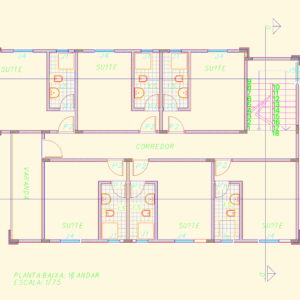

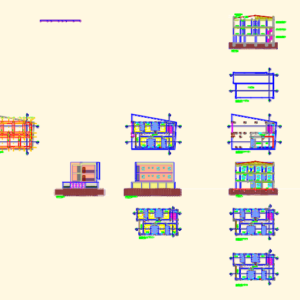

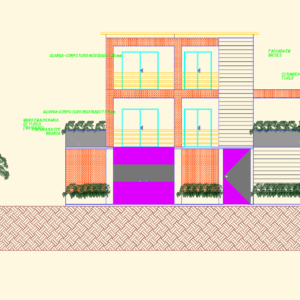

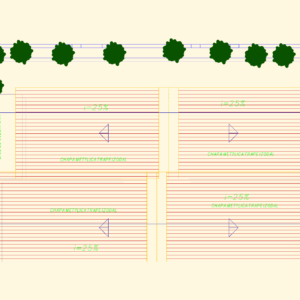

Includes floor plans for the ground floor (rés-do-chão), first floor, second floor, and roof plan. You’ll find several cross-sections (A-A, B-B, C-C) and principal elevations showing the facade finishes like brickwork and brise soleil. Technical details cover everything from foundation footings (sapatas) to the trapezoidal metal roof sheeting. Interior layouts feature master suites, a reception area, café, and utility spaces. We’ve included a door and window schedule with specific dimensions and material specs. Scale is primarily 1/75 and 1/100. O desenho está em português e inclui o alçado principal e cortes técnicos.
Three-Floor Aparthotel Project Including Plans Sections and Elevations
